Fig. 2

Fig. 2 Refer to the following caption and surrounding text.

Download original image

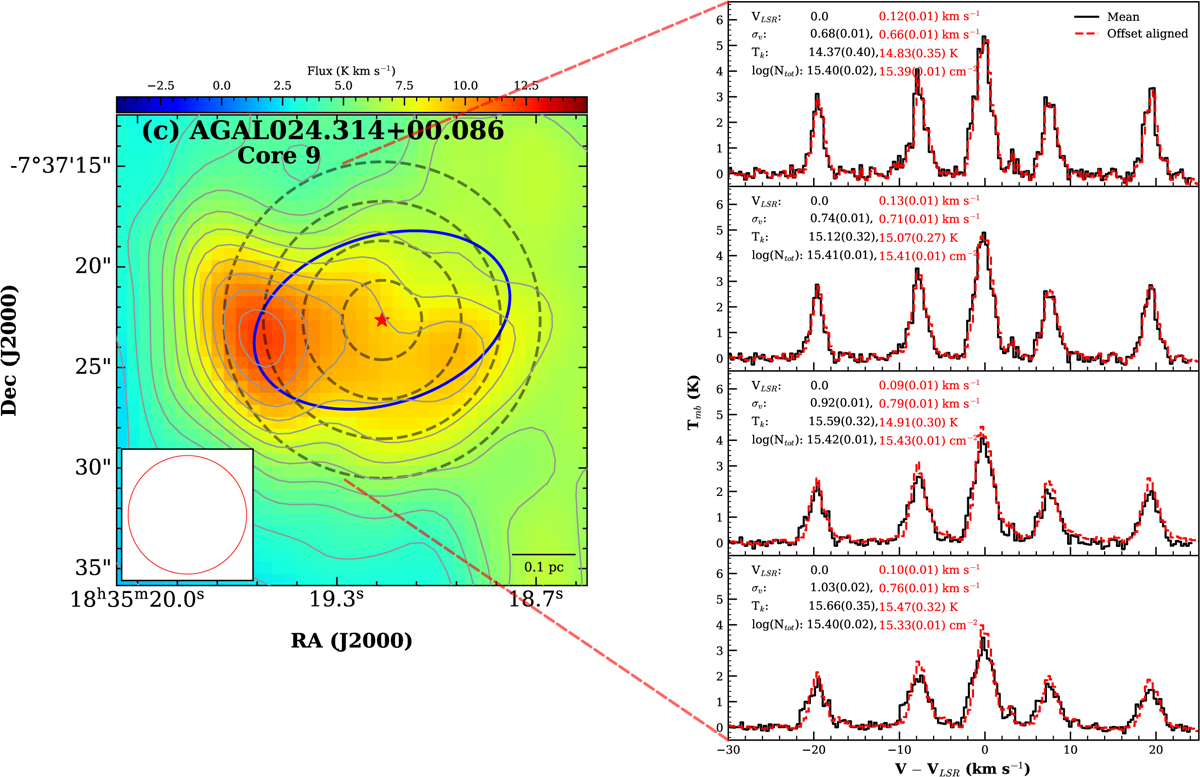

Left: example of identified dense core, outlined by a blue ellipse with its center marked by a red star. The colored background is the NH3(1,1) satellite-line intensity, also shown with gray contours. The red circle indicates the beam sizes of the NH3(1,1) line. Right: averaged NH3(1,1) line profile for each annular region as a black solid line, and the averaged spectral profile with the pixel-by-pixel velocity axis referenced to VLSR as a red dashed line. The fitting parameters are denoted by black and red text, respectively. The VLSR values of the spectra are 114.26, 114.27, 114.18, and 114.07 km s−1 for the black lines before they are aligned to zero. Top to bottom: spectra corresponding to regions from the core center to the outer areas.
