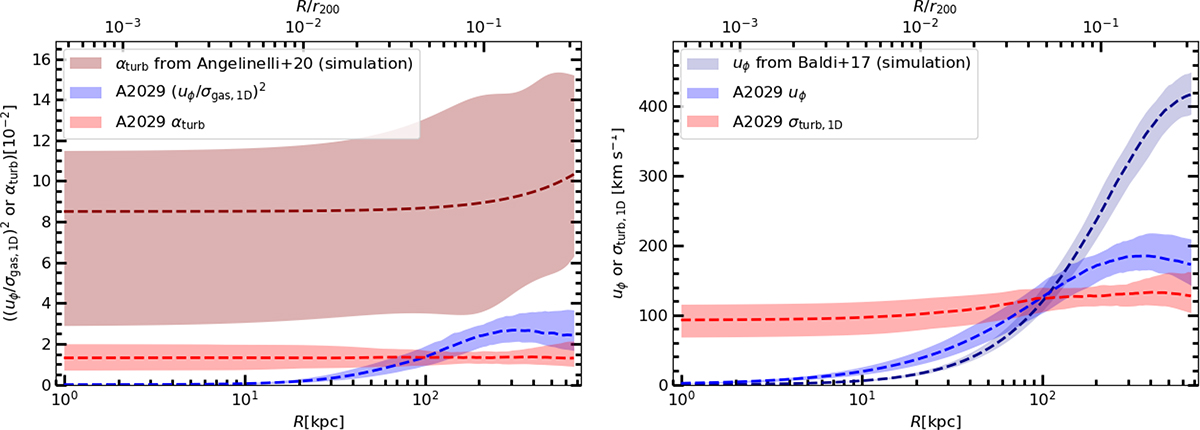

Left panel: radial profiles of squared rotation-velocity-to-velocity-dispersion ratio and turbulent-to-total pressure ratio for A2029. Right panel: radial profiles of turbulent velocity dispersion and rotation velocity for A2029. We overplot the median and average profiles of turbulence (left panel) and rotation velocity (right panel) measured in simulated clusters by A20 and B17 (dark red and dark blue regions; see text, for details), respectively. The dashed lines indicate the median profiles; the shaded regions represent the 16th–84th percentile interval profiles. The A20 and B17 profiles are obtained as in Figs. 2 of B25 and 3 of B24, respectively. The 16th–84th percentile interval of B17 profile refers to the uncertainty in the posterior distribution of our model parameters.
