Fig. 2
Download original image

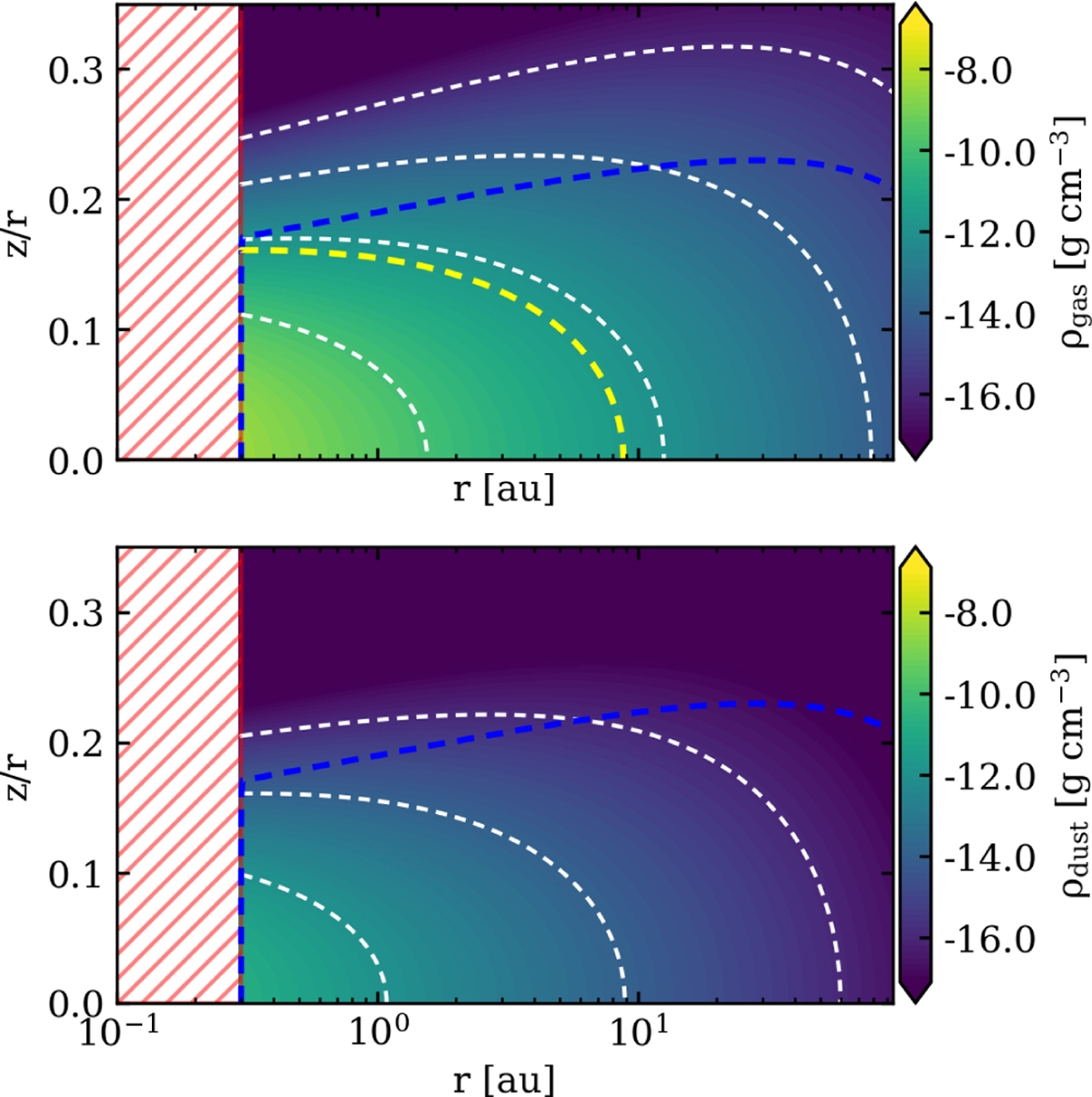

Gas and dust density of a typical ProDiMo Herbig disk model. The red hatched area is generally not modeled as it is beyond the expected dust rim at 0.3 au. The dashed blue line indicates where the visual extinction reaches unity (AV = 1), the white dashed contours align with the values on the color bar. The dashed yellow line indicates where n⟨H⟩ = 1012 cm−3.
