Fig. 3
Download original image

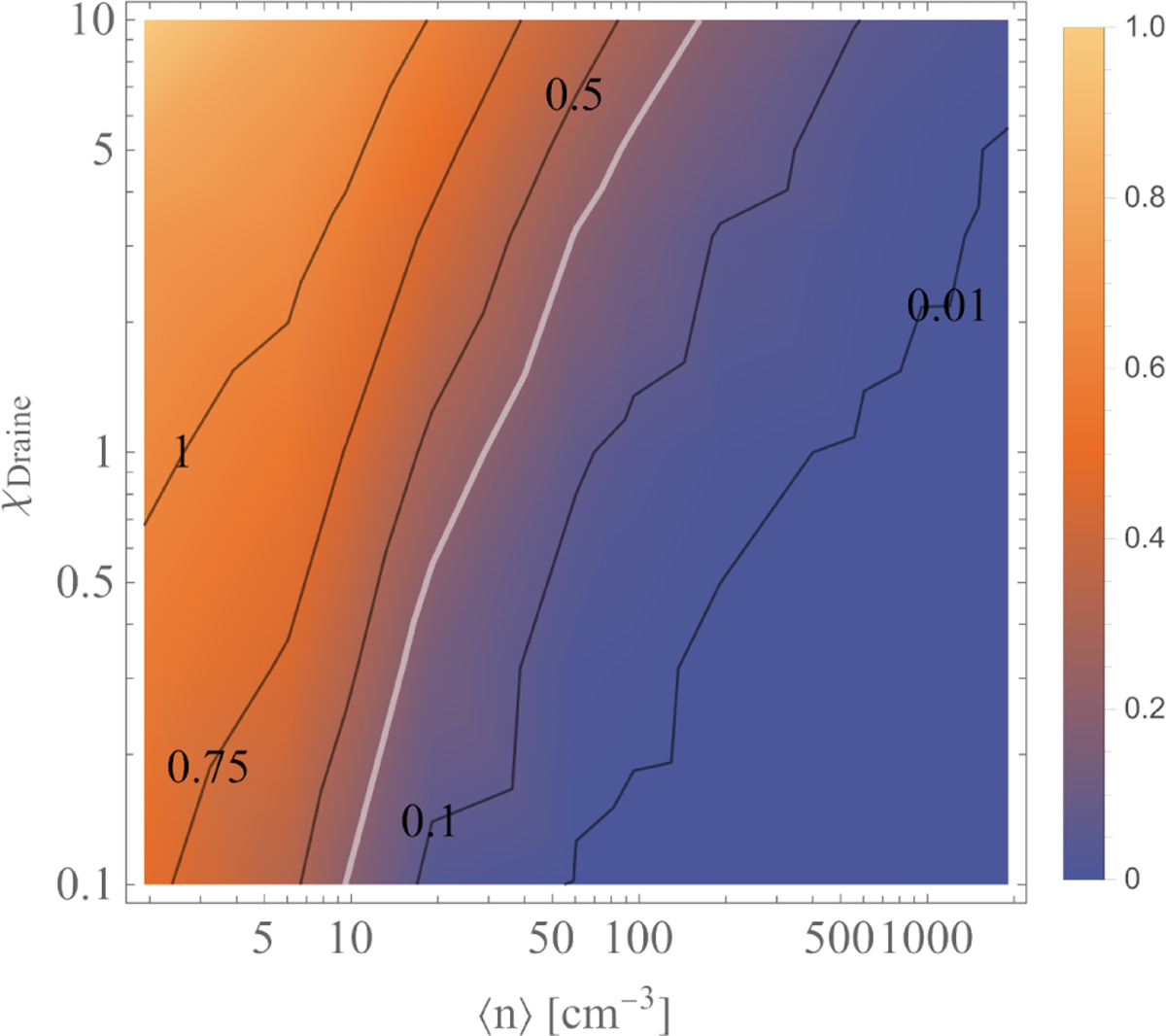

H I-to-H2 transitional AV as a function of UV field and the clump-averaged density 〈n〉, determined from the KOSMA-tau PDR model. The colour wedge gives the value of AV, and the white line indicates our observed transitional AV of 0.33.
