Fig. 4.


Download original image

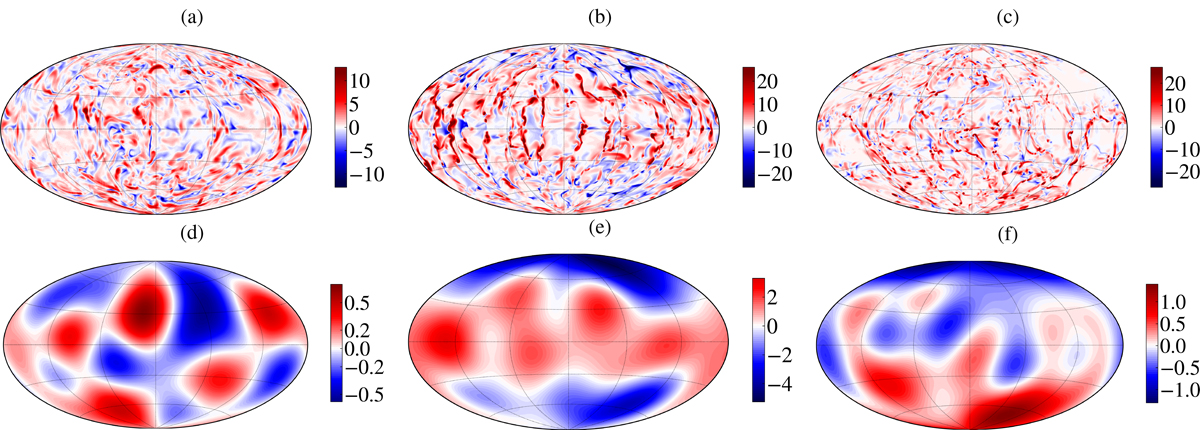

Instantaneous snapshots of the surface radial magnetic field Br at r/ro = 0.95 (top) with the same fields filtered to l ≤ 5 (bottom) for different parameters: (a,d) Nρ = 6, Ra/Racr = 32, multipolar fields; (b,e) Nρ = 6, Ra/Racr = 16, quadupolar waves; and (c,f) Nρ = 6, Ra/Racr = 32, during dipole period. The color maps in panels (a-c) were saturated to 0.5|Br|max to highlight the spatial structure of magnetic features.
