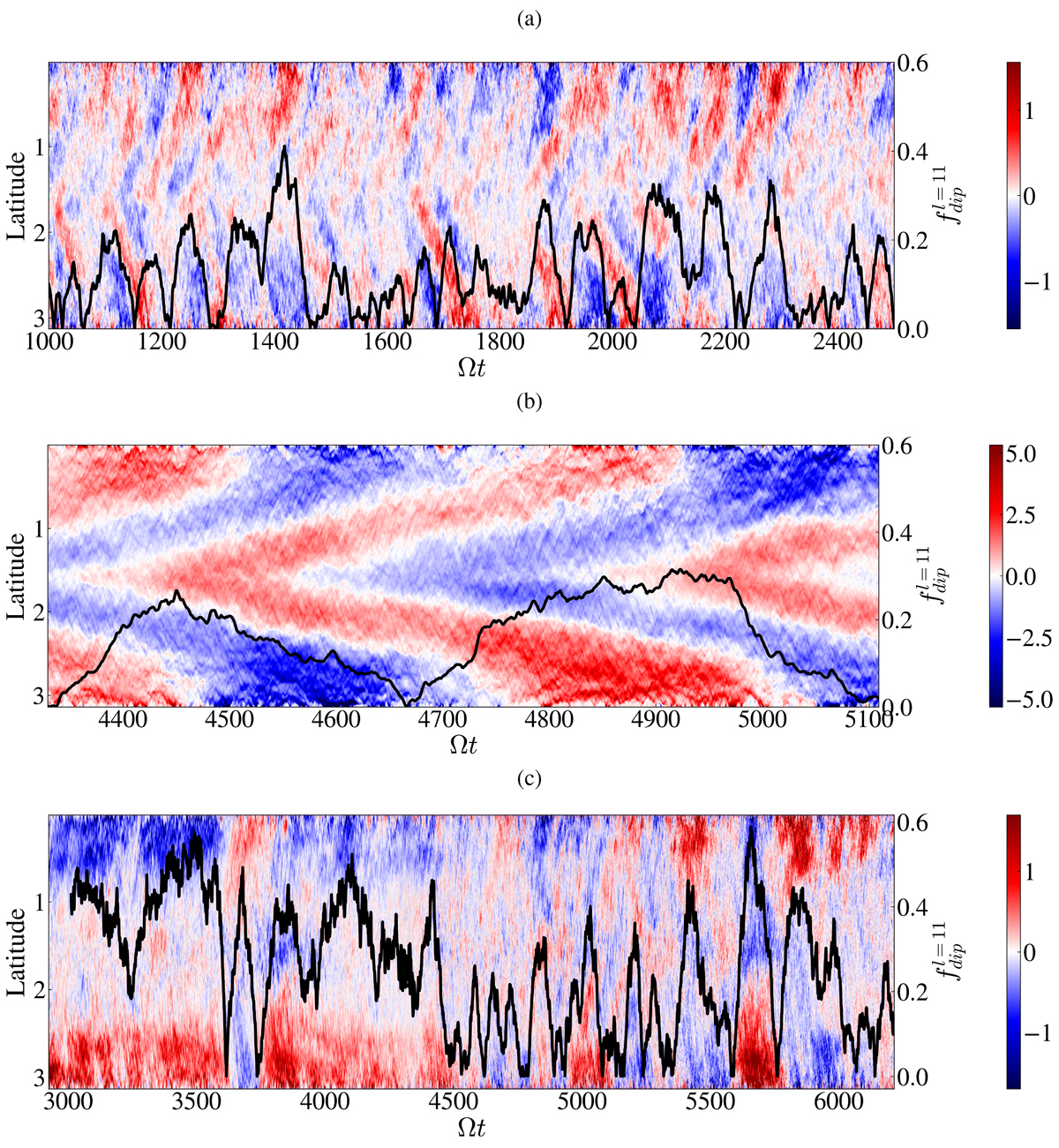

Butterfly diagrams of the axisymmetric, azimuthally averaged magnetic component ⟨Brϕ at the outer boundary. (a) Nρ = 2, Ra/Racr = 32; (b) Nρ = 6, Ra/Racr = 16; and (c) Nρ = 6, Ra/Racr = 32. To highlight large-scale components, the color maps were saturated with cutoffs of 0.2, 0.25, and 0.1, respectively; the magnitude of magnetic fluctuations is larger by a corresponding factor. Black curves correspond to the surface dipolarity with cutoff parameter of lcut = 11 (4).
