Fig. 3


Download original image

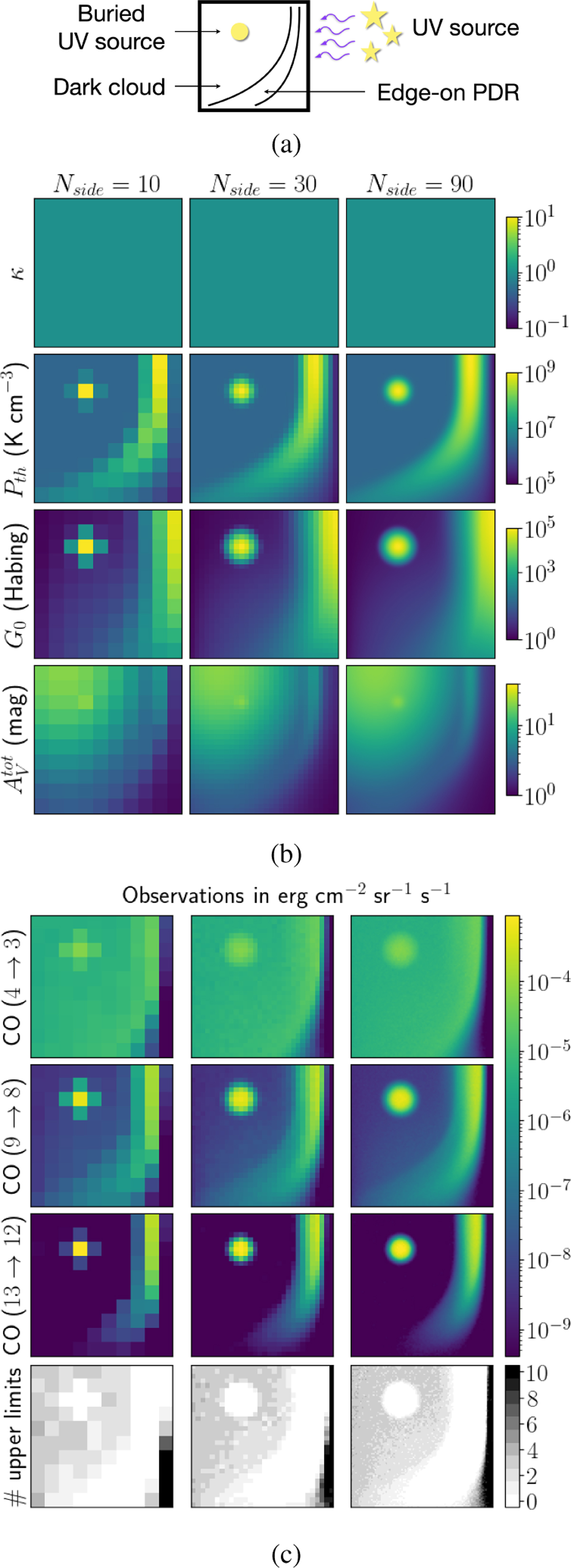

Synthetic case set up. (a) Structure of the synthetic cloud. (b) True physical parameter maps at resolution Nside = 10, 30, and 90 (from left to right). The rows show the maps of the scaling factor κ, the thermal pressure Pth, the intensity of the radiation field G0, and the visual extinction AVtot$\[A_{V}^{\text {tot}}\]$. (c) Simulated observation maps of three out of the ten considered lines, and maps of number of lines with upper limits per pixel.
