Fig. 5
Download original image

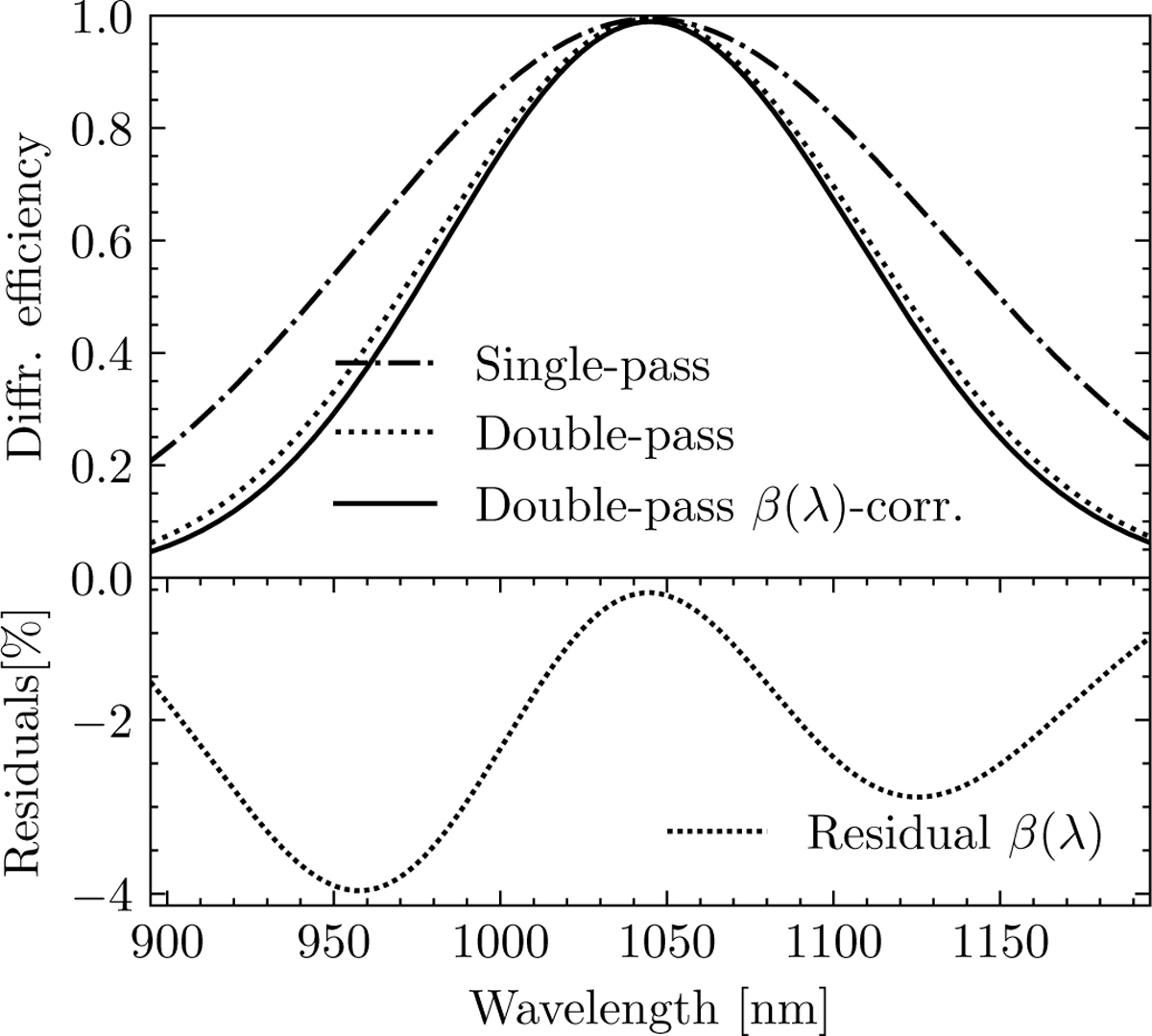

Theoretical diffraction efficiency curves of the grating in single pass, double pass (multiplying twice by the Gaussian efficiency function from Fig. 2), and double pass taking into account the wavelength-dependent incidence angle at the second pass. In the lower frame, we plot the residuals between the two double pass solutions.
