Fig. 2.
Download original image

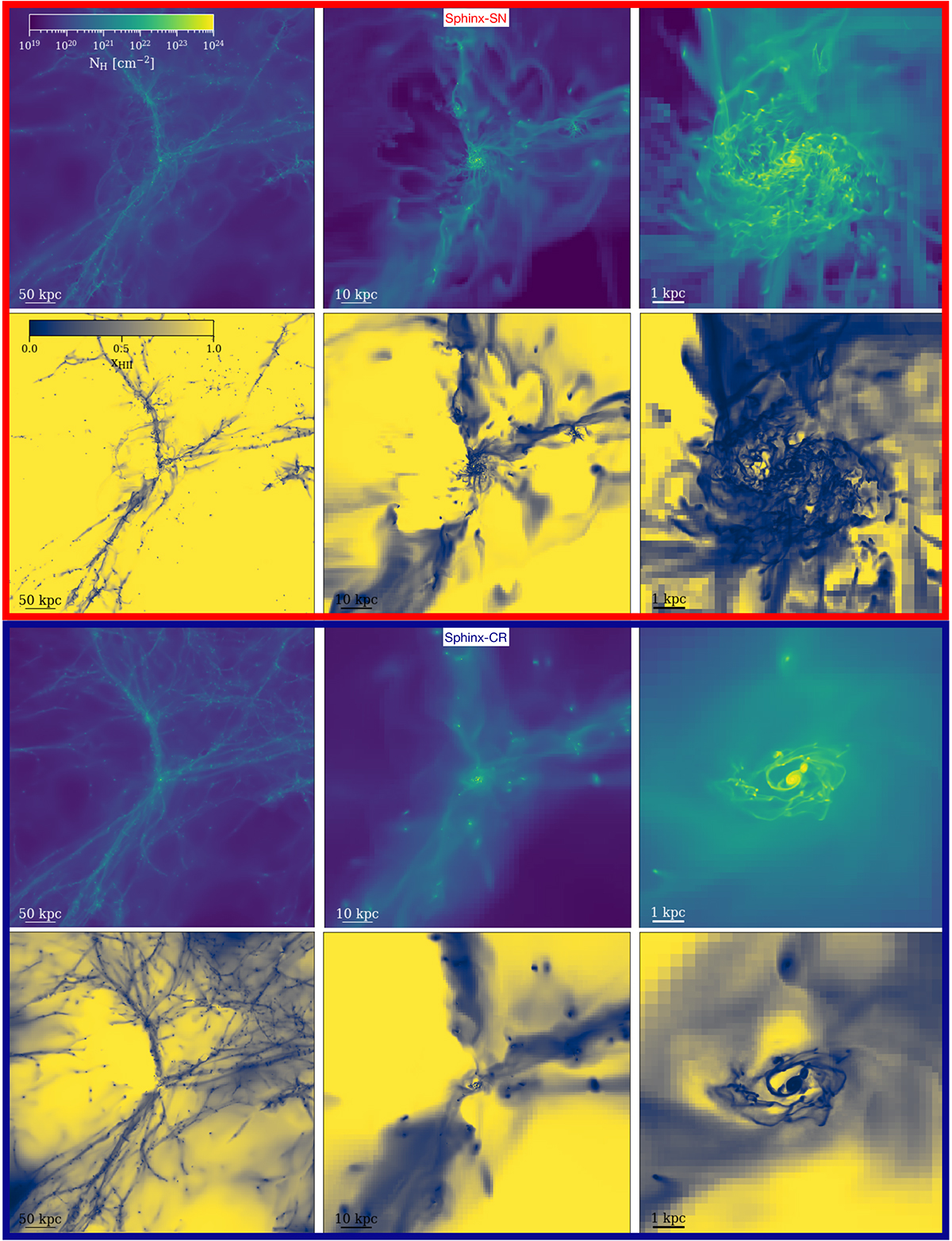

Hydrogen gas column density (first rows) and mass-weighted fraction of ionised hydrogen (second rows) maps centred on the most massive halo at z = 5 from SPHINX-SN (top) and SPHINX-CR (bottom). From left to right, maps are 500, 100 and 10 kpc wide, and a 50, 10 and 1 kpc width scale bar is respectively plotted in the lower left corner of each panel.
