Fig. 11

Download original image

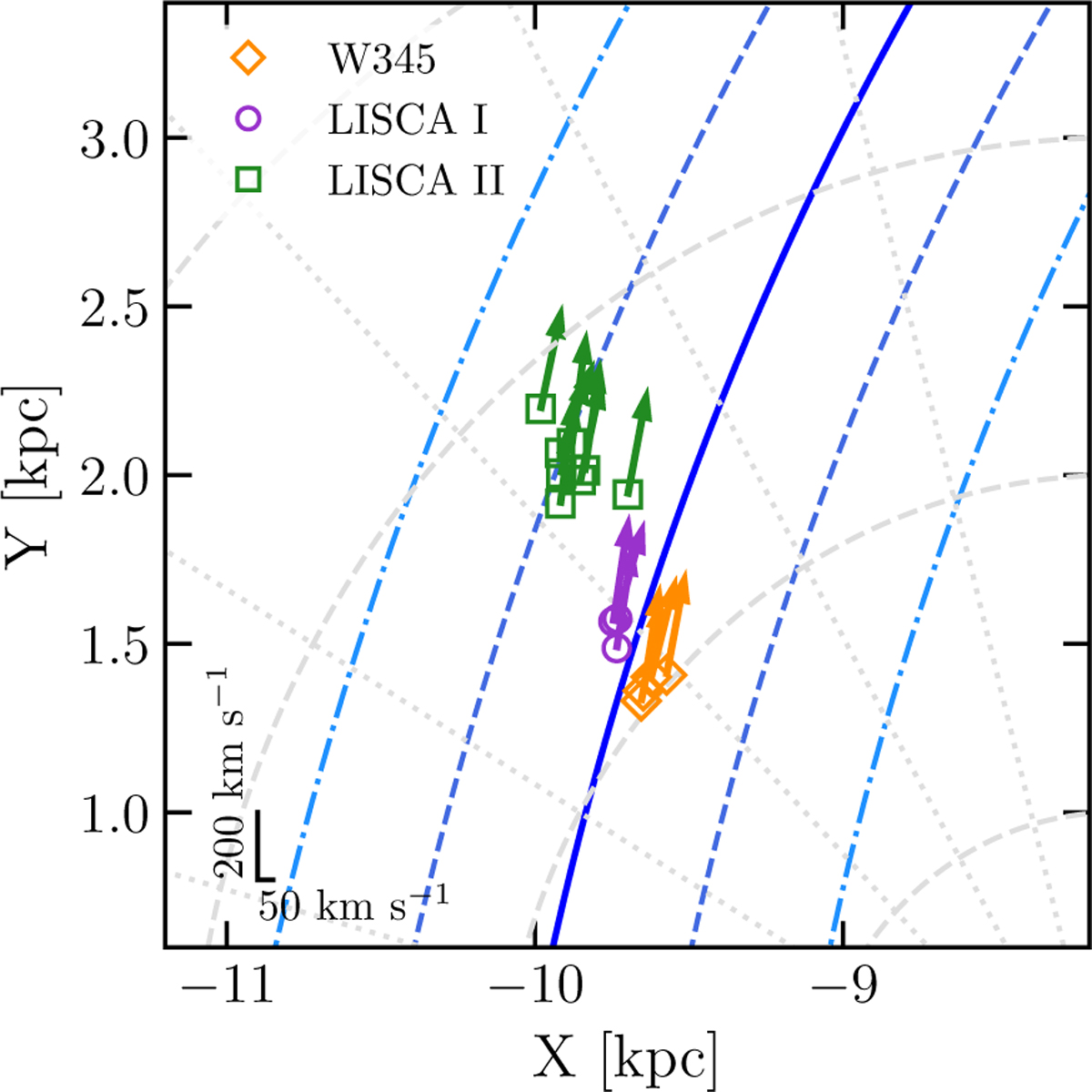

XY projection of the star cluster galactocentric positions, while arrows show the VX, VY velocities (with velocity scale reported in the bottom left corner). Galactocentric coordinates were obtained by direct deprojection of the 6D coordinates listed in Table 4. Each cluster is color-coded according to the structure it belongs to: orange diamonds for W345, purple circles for LISCA I, and green squares for LISCA II . The blue lines show the Perseus spiral arm model (solid) by Reid et al. (2019), with once (dashed) and twice (dash-dotted) the arm width. The background grid is a heliocentric polar grid with the dashed gray lines showing distances from 1 to 4 kpc, and the dotted lines sampling the angular direction every 15 degrees.
