Fig. C.6
Download original image

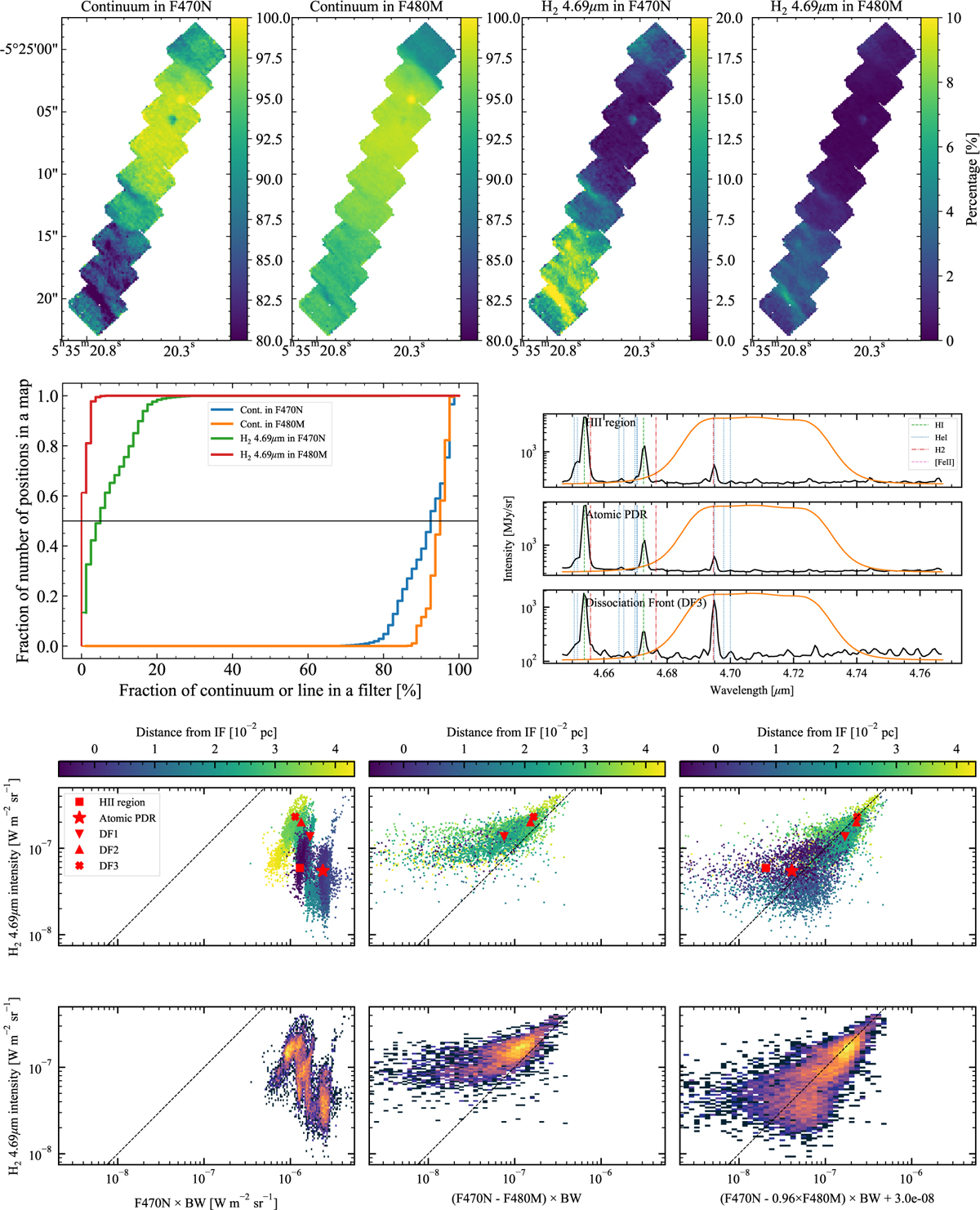

Analysis of the continuum and H2 4.69 μm in F470N and F480M calculated from the NIRSpec spectra. Top: Maps of continuum fraction in F470N and F480M (left two panels) and H2 4.69 μm (right two panels). Middle left: Cumulative histograms of the continuum and line fractions in top panels. Middle right: Template spectra in the range covered by F470N. Bottom: Correlation between the synthetic images (left: F470N, middle: F470N–F480M, right: the best fit with Eq. 5) and the measured H2 4.69 μm line intensities. Symbols, lines, and plot types are the same as inFig. 4. See Sect. 4.3.7 for details.
