Dark and bright sides of the Broad Line Region clouds as seen in the FeII emission of SDSS RM 102

Open Access

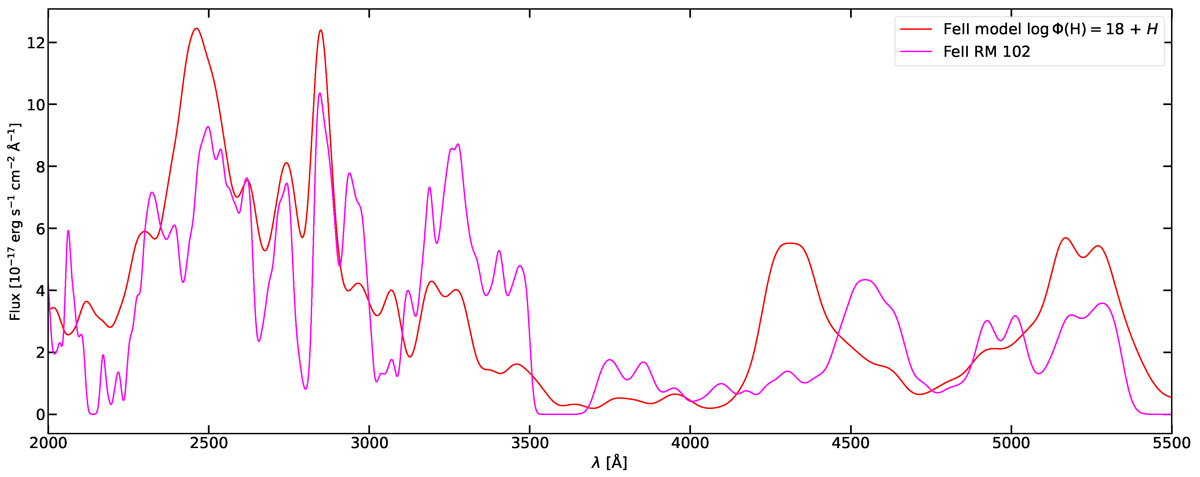

Fig. B.1.

Comparison of the observed Fe II emission from the source with the Fe II model produced from a CLOUDY simulation including mechanical heating (also shown as the red line in Figure 2), assuming 25% covering factor after being convolved with a Gaussian kernel of FWHM = 2500 km s⁻¹.
