Fig. 8


Download original image

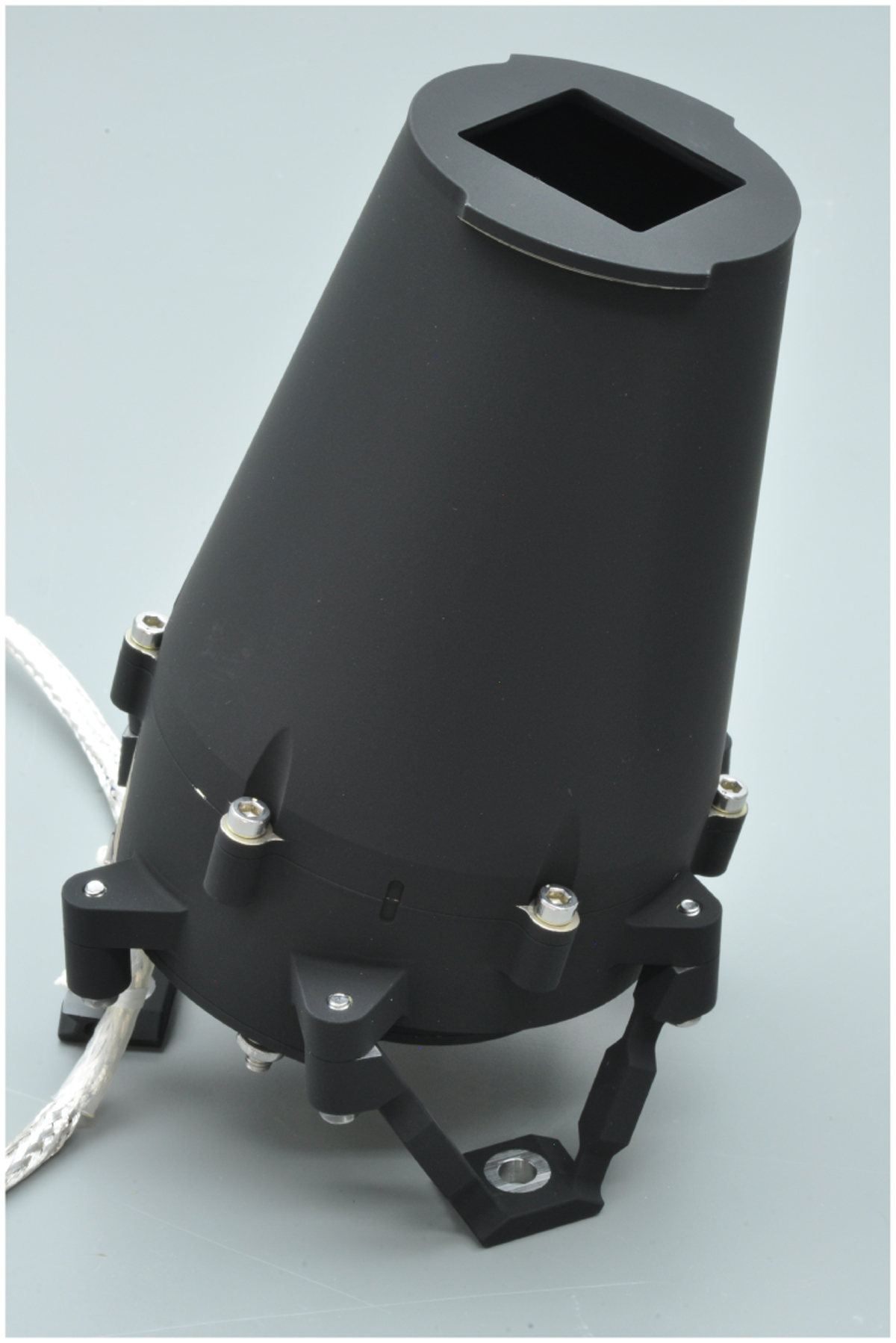

NI-CU flight model before integration into NISP. The beginning of the ∼680 mm nominal and redundant harnesses are visible at the bottom left, connecting to a long harness to the warm electronics at a connector bracket on the NISP structure. Despite being located far outside NISP’s optical beam, it is fully coated with black PNC. Only screws and harness remain uncoated.
