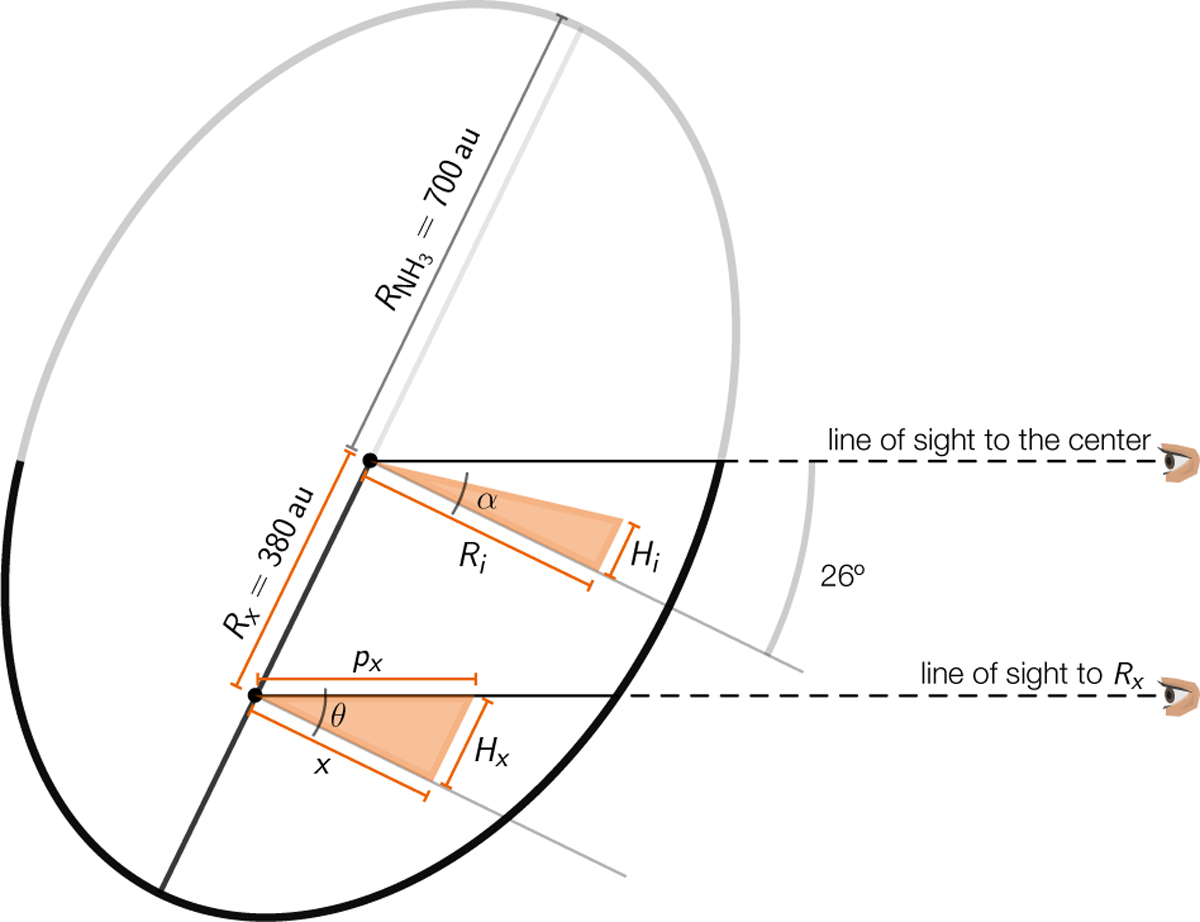

Fig. A.6
Download original image
Sketch for calculating the maximum path of the NH3 column density measured by an observer who is looking through the disk at different positions. For instance, when an observer to the right looks at the position Rx on the eastern disk side, its line-of-sight crosses a path which is 2 × px long, where the angle θ is always greater than the flaring angle α.
