Fig. A.2.
Download original image

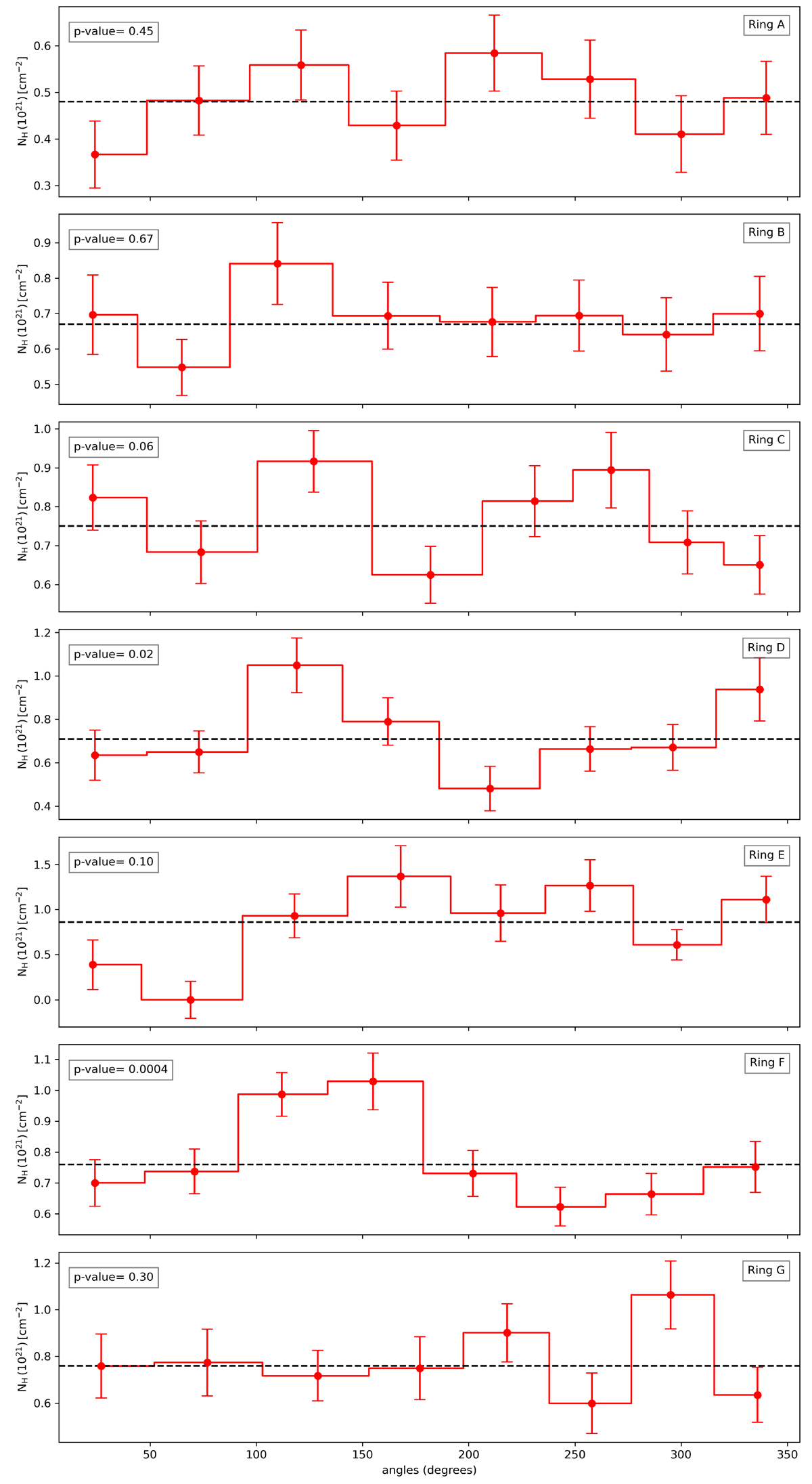

X-ray absorption for the seven rings derived from the spectral analysis using the model CONSTANT × zTBabs × TBabs × RINGSCAT × PEGPWRLW. Each sector within the same region is fit with a constant, yielding acceptable fits (p-value displayed in the upper left of each plot) for all rings except for Ring F.
