Fig. 4.

Download original image

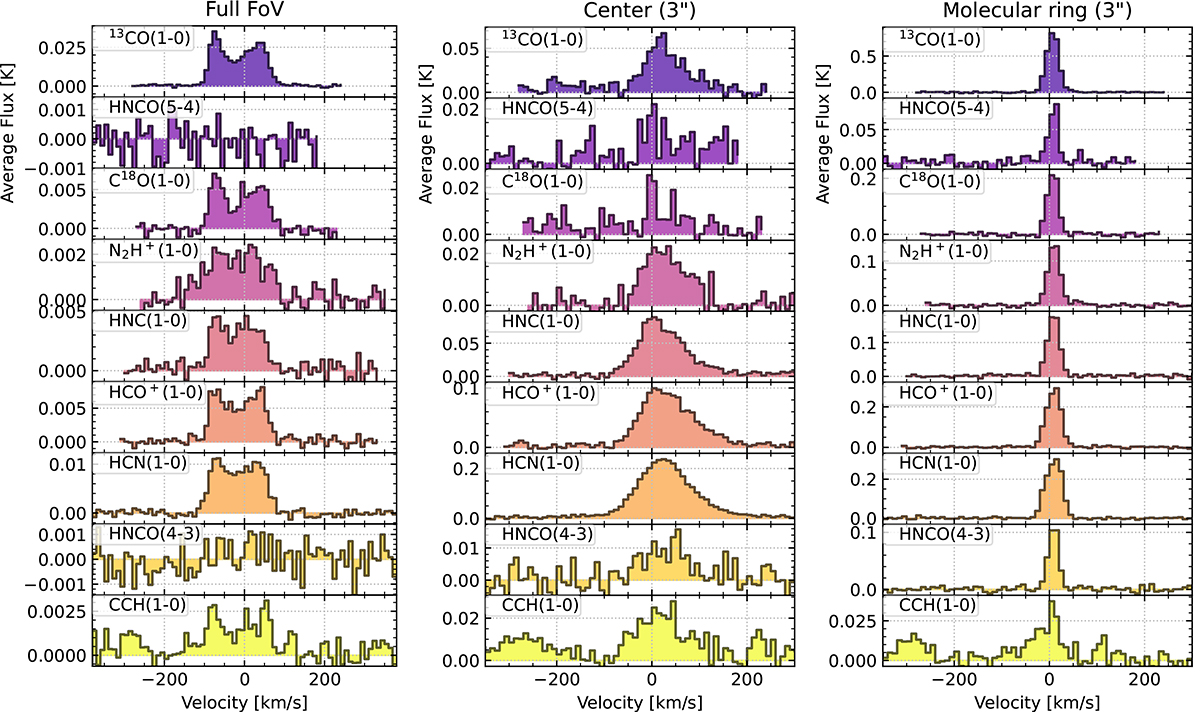

Spectra of all molecular lines for the full disk (left panel), a 3″ sized region in radius in the center (middle panel) and the western edge of the molecular ring (right panel) where N2H+ is particularly bright. The full disk spectra are extracted using the area covered by the perimeter (“hull”) of the mosaic of all pointings (see Fig. 1) for 13CO. Since this hull is frequency dependent, this corresponds to the smallest area out of all lines.
