Fig. C.1


Download original image

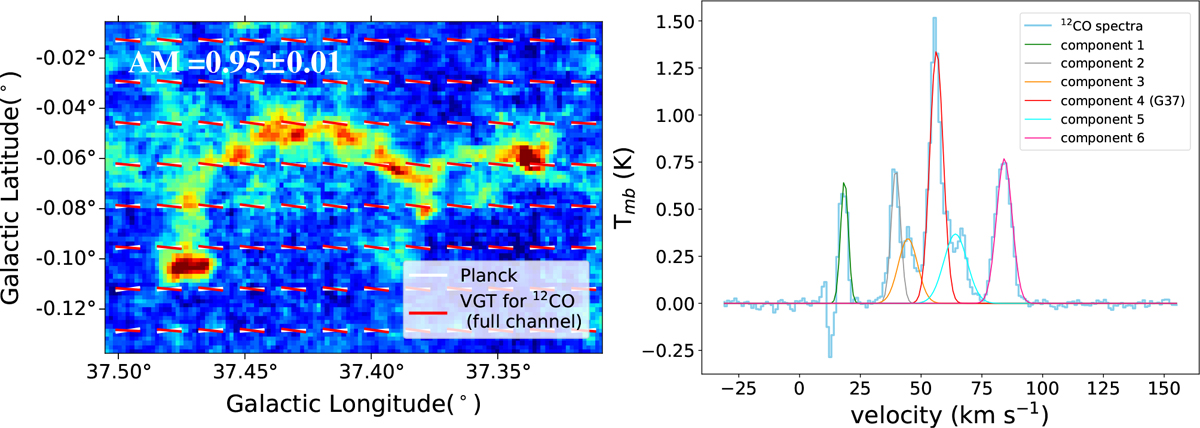

Comparison of magnetic field measured with VGT for 12CO (3–2) and Planck dust polarization. The comparison of magnetic fields measured with VGT for 12CO (3–2) and Planck dust polarization is shown in the left panel. The orientation of the magnetic field measured using VGT for 12CO (3–2) spectra and dust polarization from Planck is displayed by the red and white vectors, respectively. The integrated intensity of 12CO (3–2) spectral line from −31 to 155 km s−1 is shown in the background. The right panel shows the spectral line of 12CO (3–2) across the full velocity channel, with the six different velocity components represented by different color lines.
