Fig. 8


Download original image

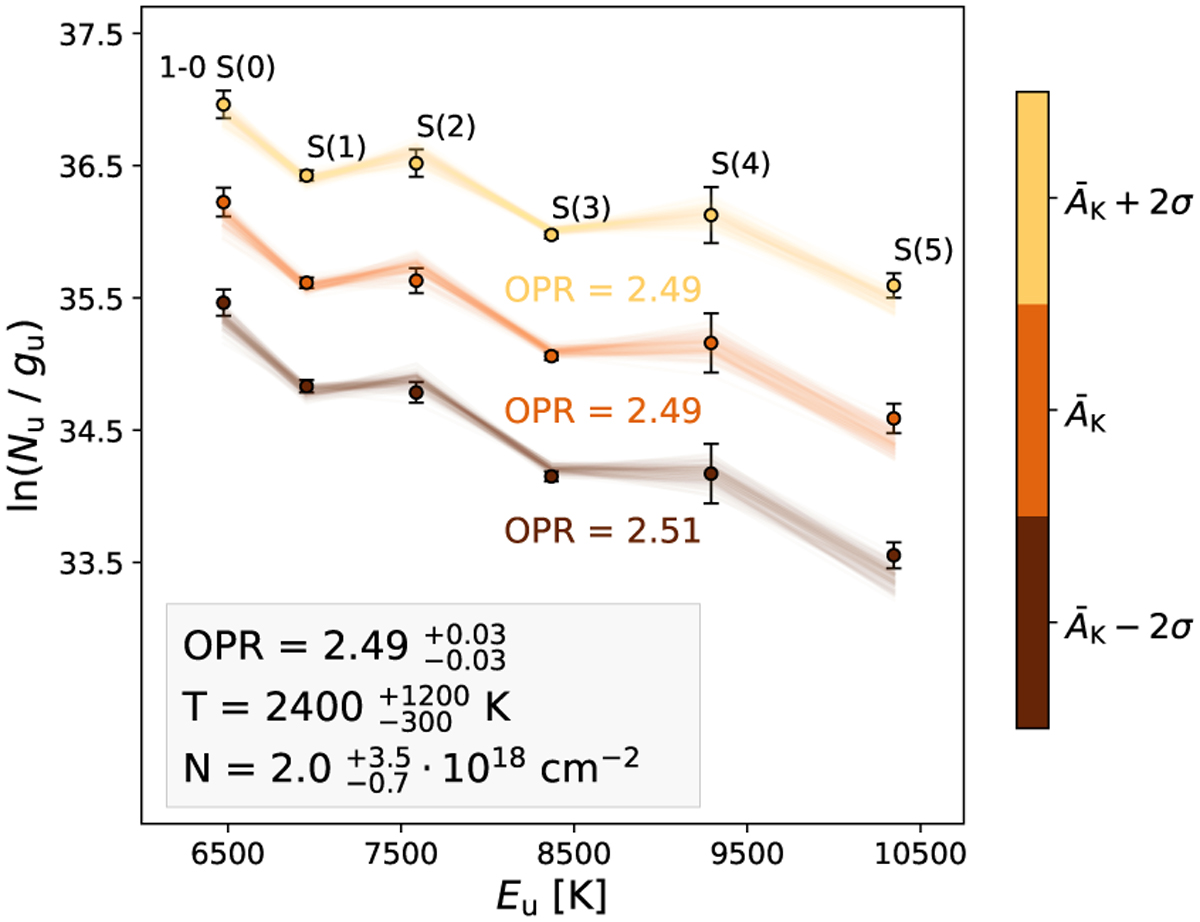

Rotation diagrams for ro-vibrational H2 emission in an aperture at 0′.′78 from the source (AP3), adopting three different values for the extinction AK . Fit parameter medians and uncertainties listed in the shaded box are derived using a sampling procedure (see Section 3.3.3). 100 sampled Boltzmann distribution fits are plotted for three different values of AK to portray its influence on the best-fit ortho-to-para ratio (OPR). A¯K${\bar A_K}$ is the mean and σ is its uncertainty. T is short for temperature and N for column density.
