Fig. 5

Download original image

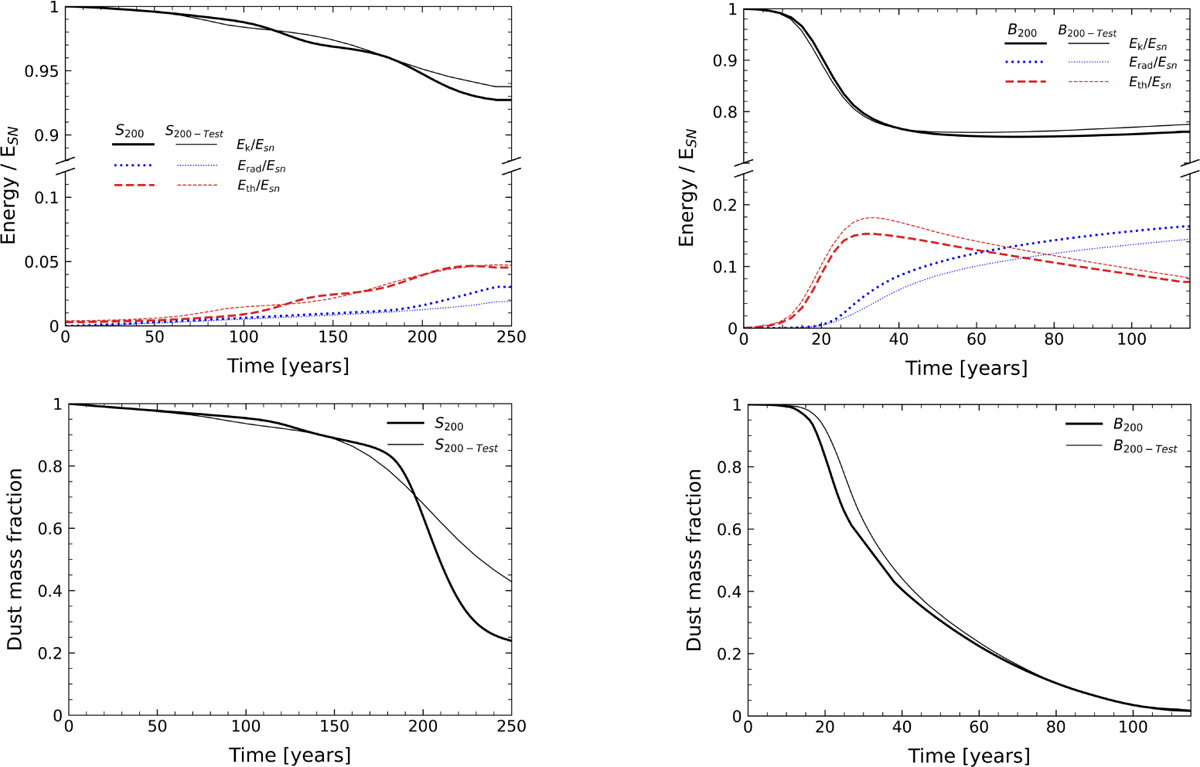

Upper panels: SNR (only gas) kinetic (solid), thermal (dotted), and radiated (dashed) energies as a function of time for S200 (left) and B200 (right). Lower panels: evolution of the dust mass, normalized to that ejected by the eruption. For all panels, thicker lines correspond to S200 and S200, while thinner lines to B200−Test and S200−Test, respectively.
