Fig. 7


Download original image

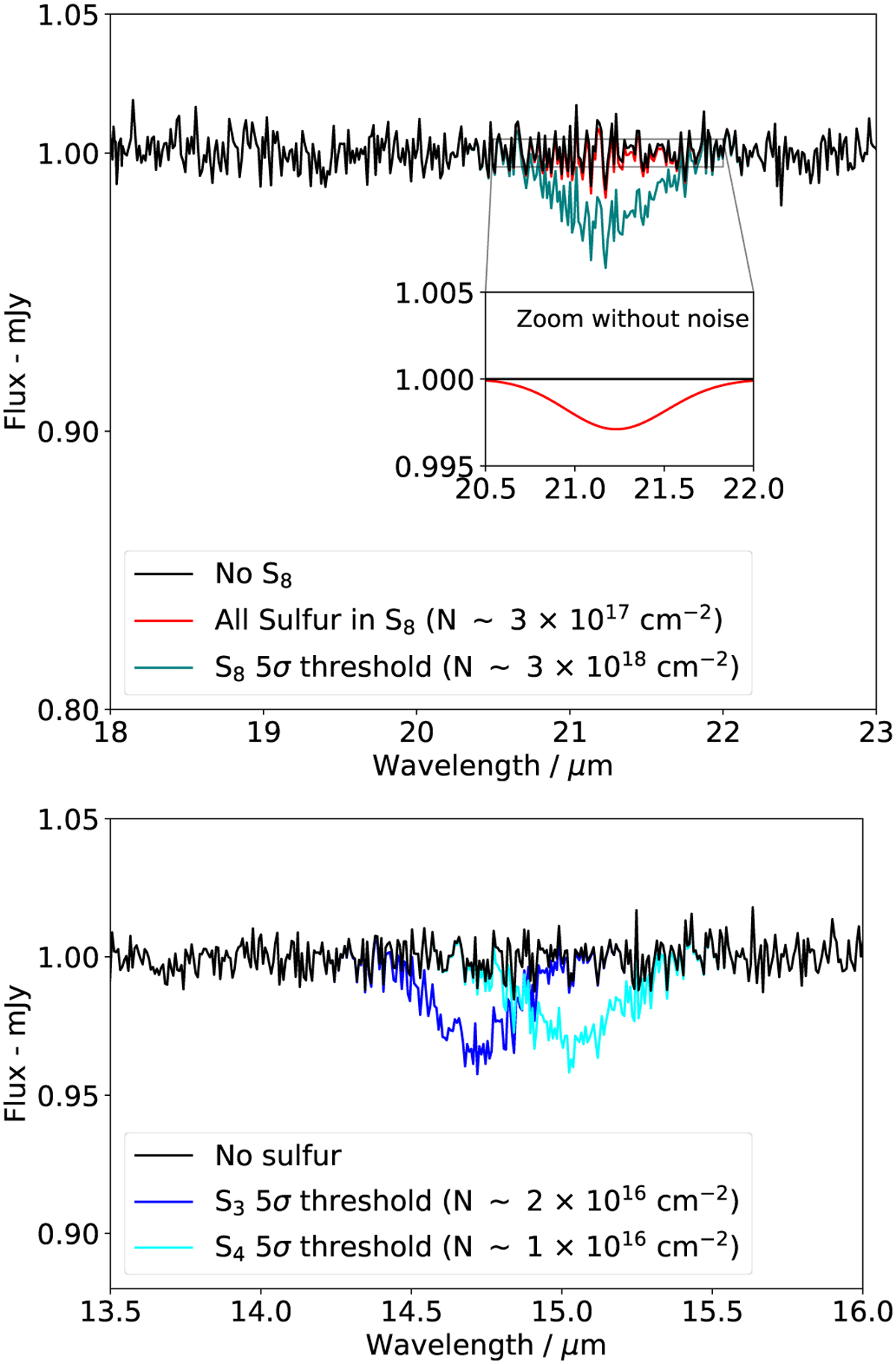

Sulphur allotropes detection thresholds. Top: S8 5σ threshold estimation in our synthetic spectra generator. The spectrum in black contains no sulphur, while in red, where we consider that the entire cosmic sulphur abundance is locked in S8 (see text for calculation), it still does not result in a possible detection. In teal blue, the column density needed to detect S8 with a 5<τ threshold is an order of magnitude greater than the cosmic sulphur abundance. Bottom: Similarly to upper panel, but for the S3 and S4 5σ threshold estimations (in blue and cyan, respectively). The two bands are isolated in this figure but can be seen overlapped by other features in Fig. B.3.
