Fig. 10


Download original image

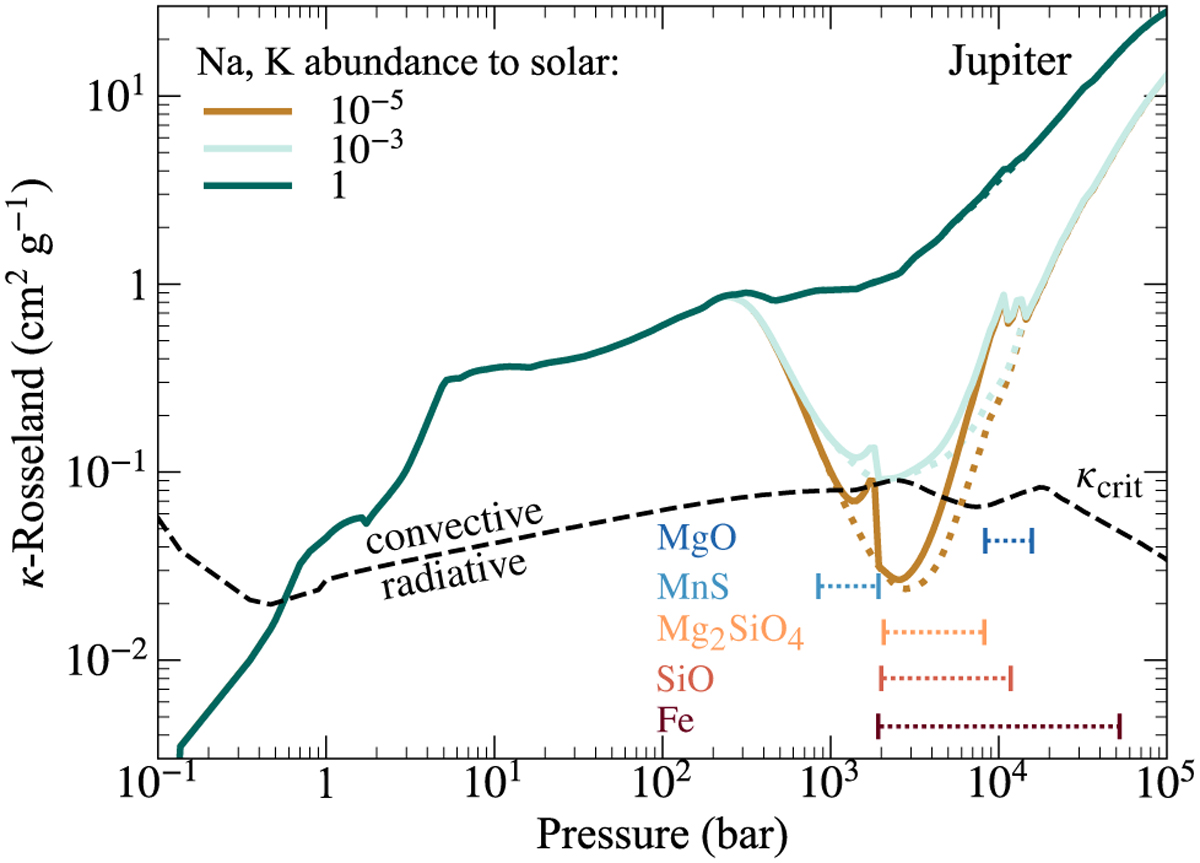

Solid curves give κR of Jupiter for varying Na and K abundances and including the opacities from the condensates Fe, MgO, Mg2 SiO4, MnS, and SiO. The abundance of all other heavy elements was set to three times solar. The regions where each condensate contributes to κr are illustrated by the bars. The dotted curves give κR without the contribution from condensate opacities. The dashed black curve corresponds to the critical opacity, κcrit.
