Fig. 4
Download original image

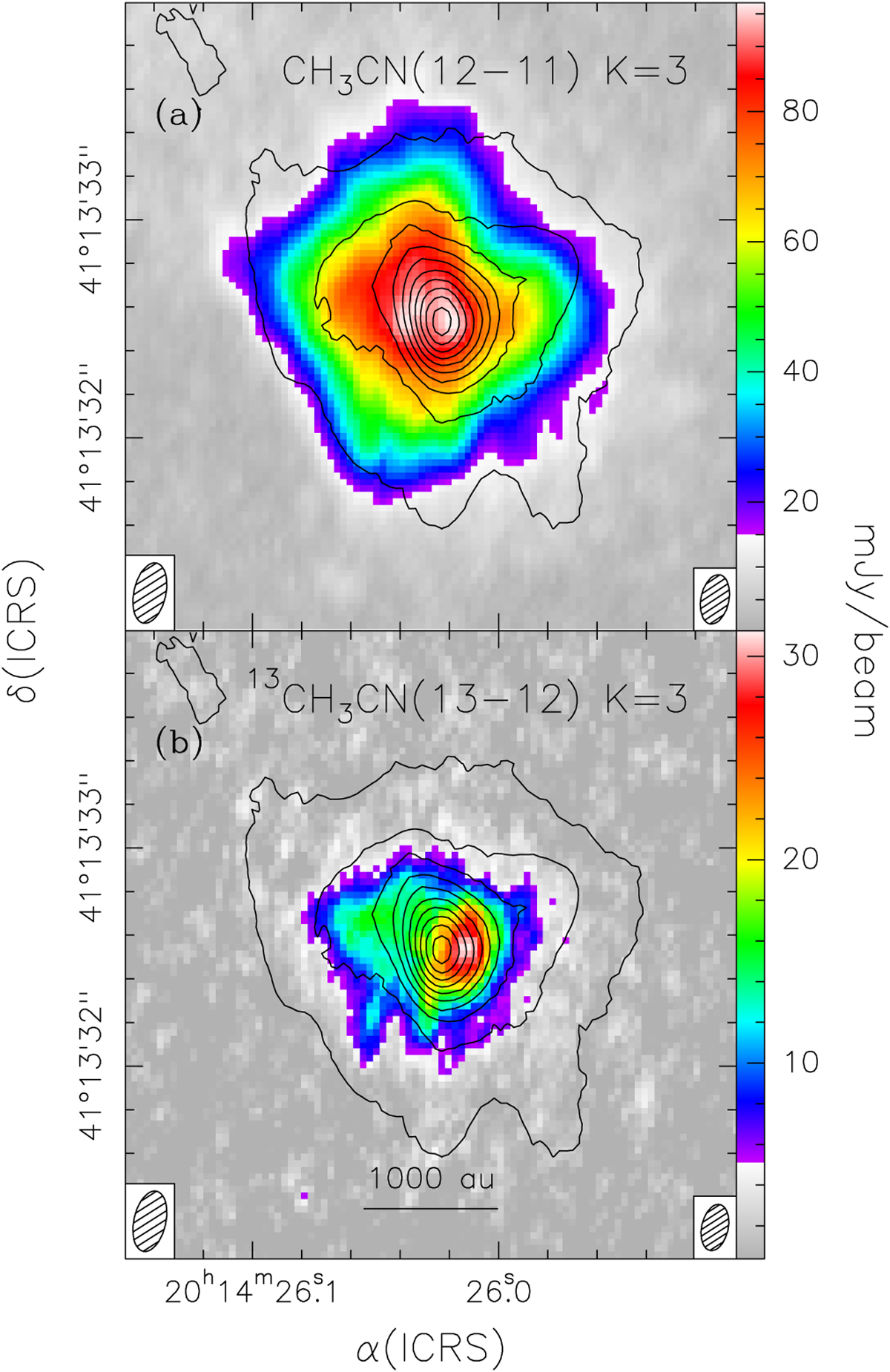

Map of the 1.4 mm continuum emission (contours) overlaid on the moment-8 map of the CH3CN(12–11) K=3 (panel a) and 13CH3CN(13–12) K=3 line (panel b). Contour levels range from 1.4 to 26.6 in steps of 2.8 mJy/beam. The ellipses in the bottom left and right corners indicate the synthesized beam of the continuum and line maps, respectively.
