Fig. 10
Download original image

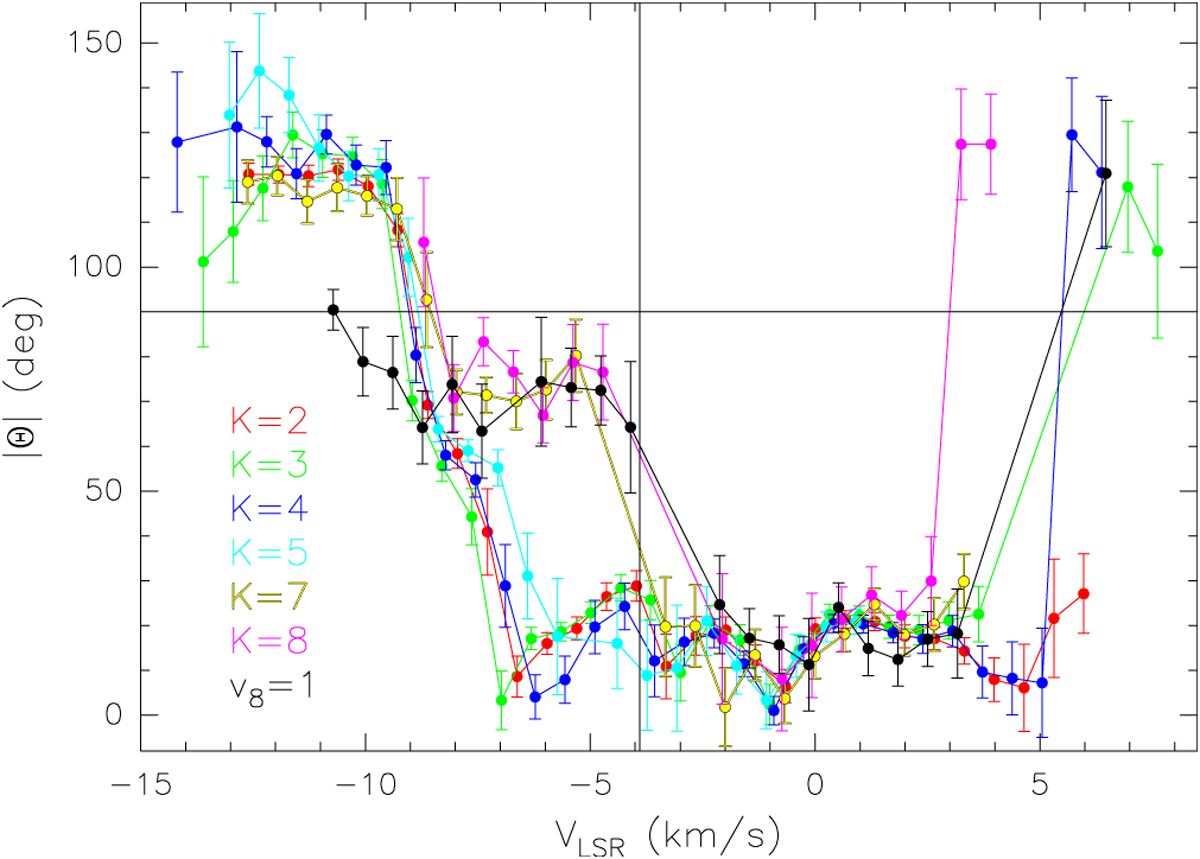

Absolute value of the angle between the major axis of the deconvolved FWHM of the emission in the line channel, and the axis of the disk versus the LSR velocity of the channel. The colors correspond to the CH3CN(12–11) lines as indicated in the figure. The vertical line marks the systemic velocity. The horizontal line corresponds to |Θ| = 90°.
