Fig. A.3.

Download original image

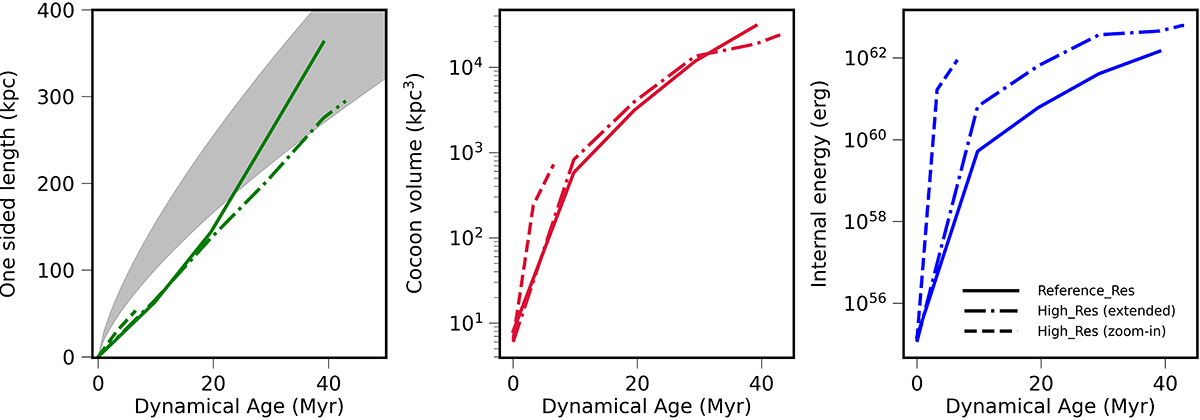

Evolution patterns of the internal and external behavior of the simulated jet cocoon system over time for the three resolution cases discussed in Table A.1. The parameters plotted here are the lengthwise cocoon growth (left), cocoon volume growth (middle), and internal energy growth (right) across the three systems simulated at varying numbers of grid cells inside the jet diameter.
