Fig. 5.


Download original image

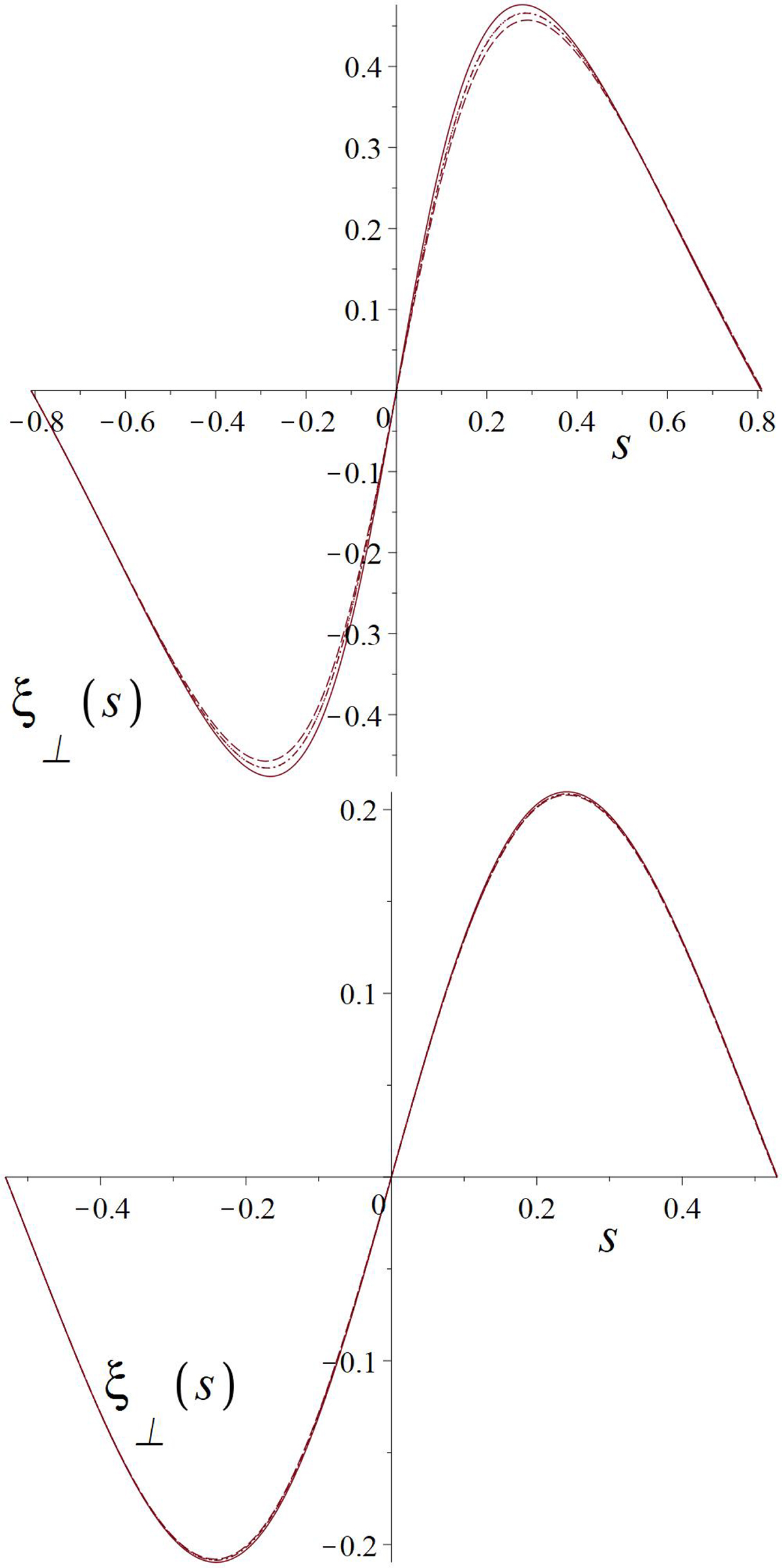

Perpendicular displacement (ξ) of the first overtone of the Alfvén continuum mode as a function of the X-point magnetic field arc length (s) on the flux lines |ψ| = 0.05 (left) and |ψ| = 0.25 (right), for B0y = 0 (solid line), B0y = 2 (dashed line), B0y = 10 (dash-dotted line), and B0y = 100 (dotted line).
