Fig. 6

Download original image

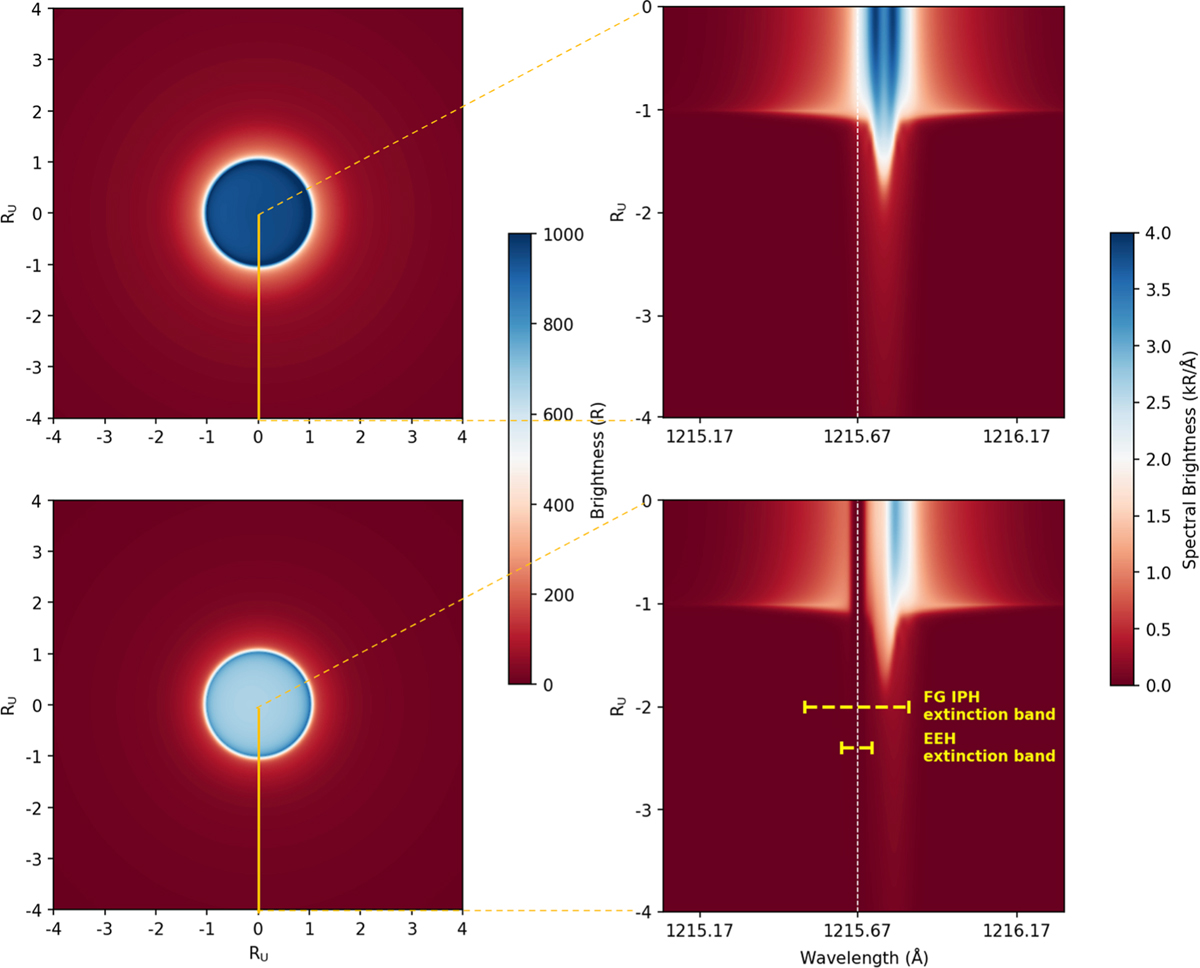

Results from radiative transfer modelling for Voyager 2 base atmosphere and 1998 observing conditions. Left column: modelled original (above) and attenuated by FG IPH and EEH (below) Lyα line-integrated intensities from Uranus’ atmosphere. Right column: line-resolved intensities for the radial pixels from the respective images in the left column. The Lyα lines are represented in Earth’s frame. All Doppler shifts are properly accounted for calculating the attenuation.
