Fig. 4

Download original image

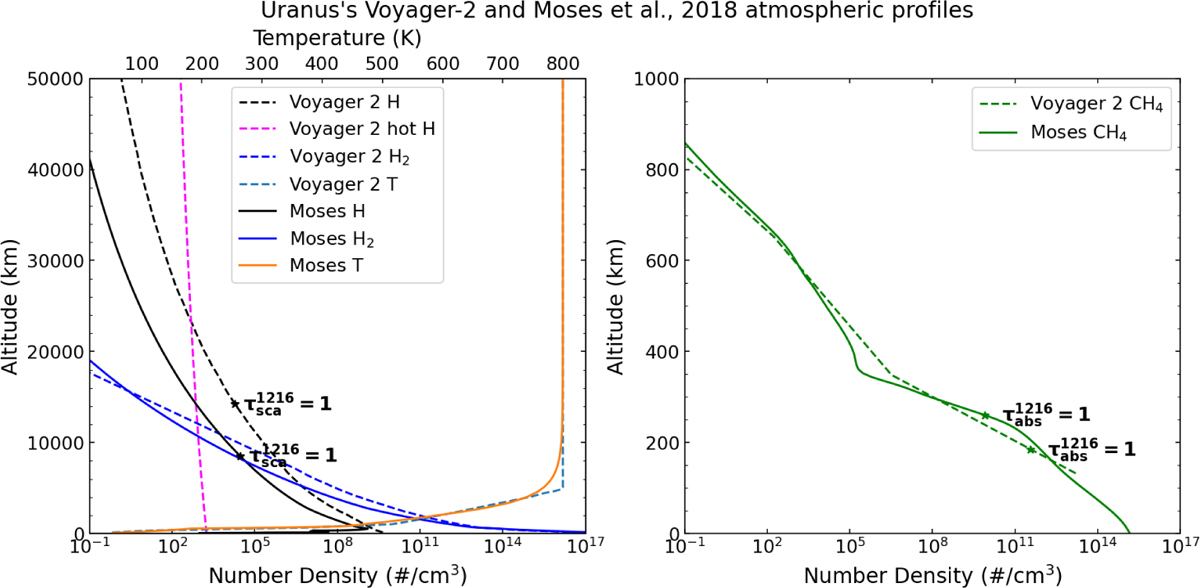

Voyager 2 and extended Moses et al. (2018) atmospheric profiles (T∞ = 800 K for Bates extension) of Uranus. and
represent the Lyα scattering and absorption optical depths, respectively. When seen planetwards, for Voyager 2/Moses profiles, they reach to unity at the altitudes of 14 200/8500 km, and 184/260 km, respectively.
(not shown in the figure) is unity at the altitudes of ∼180 and 240 km for Voyager 2 and Moses atmosphere profiles, respectively. We do not consider He in our atmospheric models since it is not relevant for Lyα radiative transfer.
