Fig. 2.

Download original image

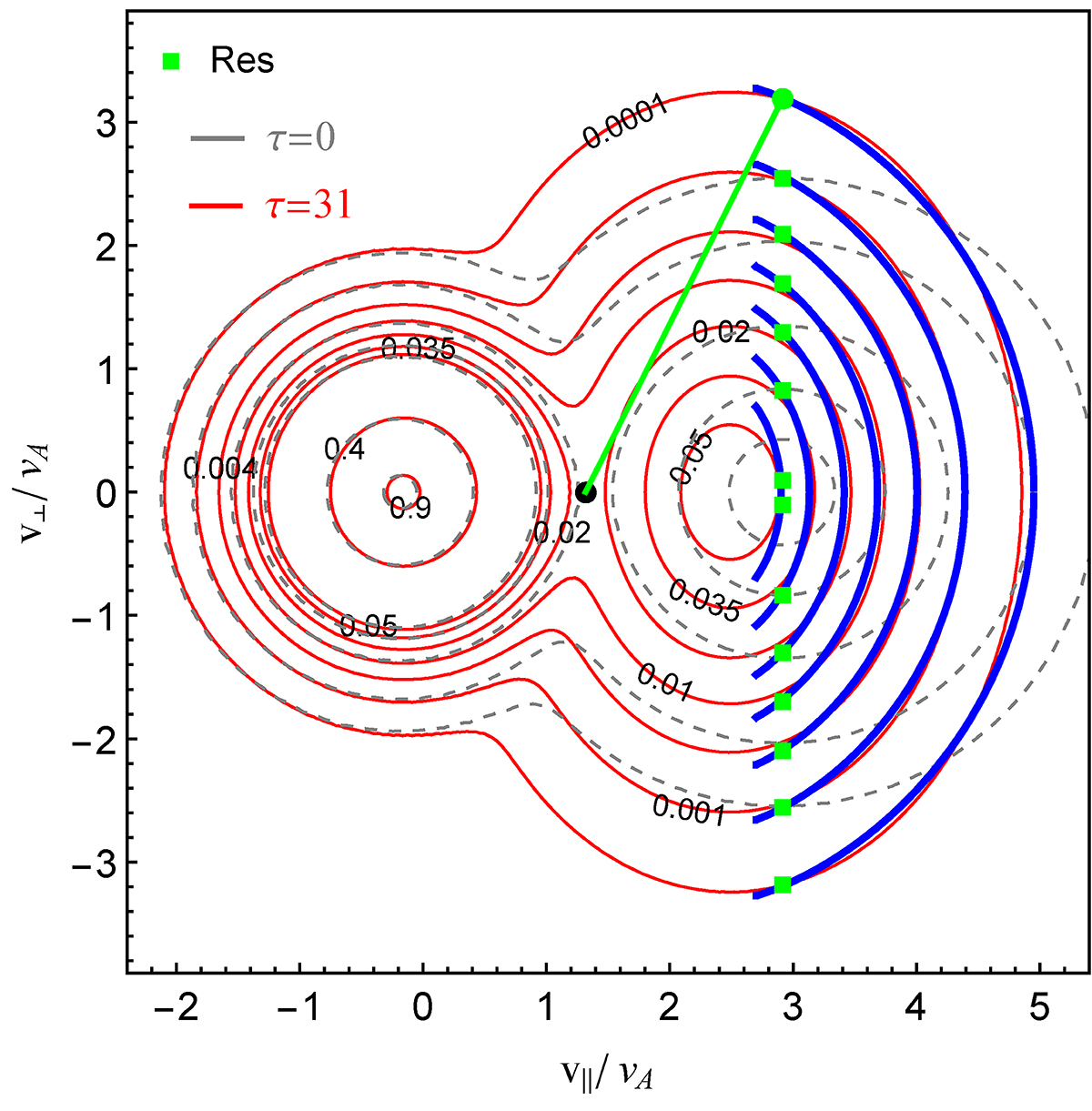

Contours of proton VD for run 4 at τ = 0 (dashed gray) and at τ = 31 (solid red), when the forward-half of VD is shaped by the kinetic shells (blue) that were found relevant for the hammerhead populations reported by PSP (Verniero et al. 2022). The diffusion contours v⊥(v∥) were computed by linking the proton coordinates (v∥, v⊥) (green squares) with the resonant wave frame (vϕ, r/vA = 1.3, 0.0) (black dot) and . The slope of these lines, such as the green line, is v⊥/[v∥ − vϕ], with v∥ and v⊥ calculated using Eqs. (14) and (15) in Isenberg & Lee (1996).
