Fig. 2.

Download original image

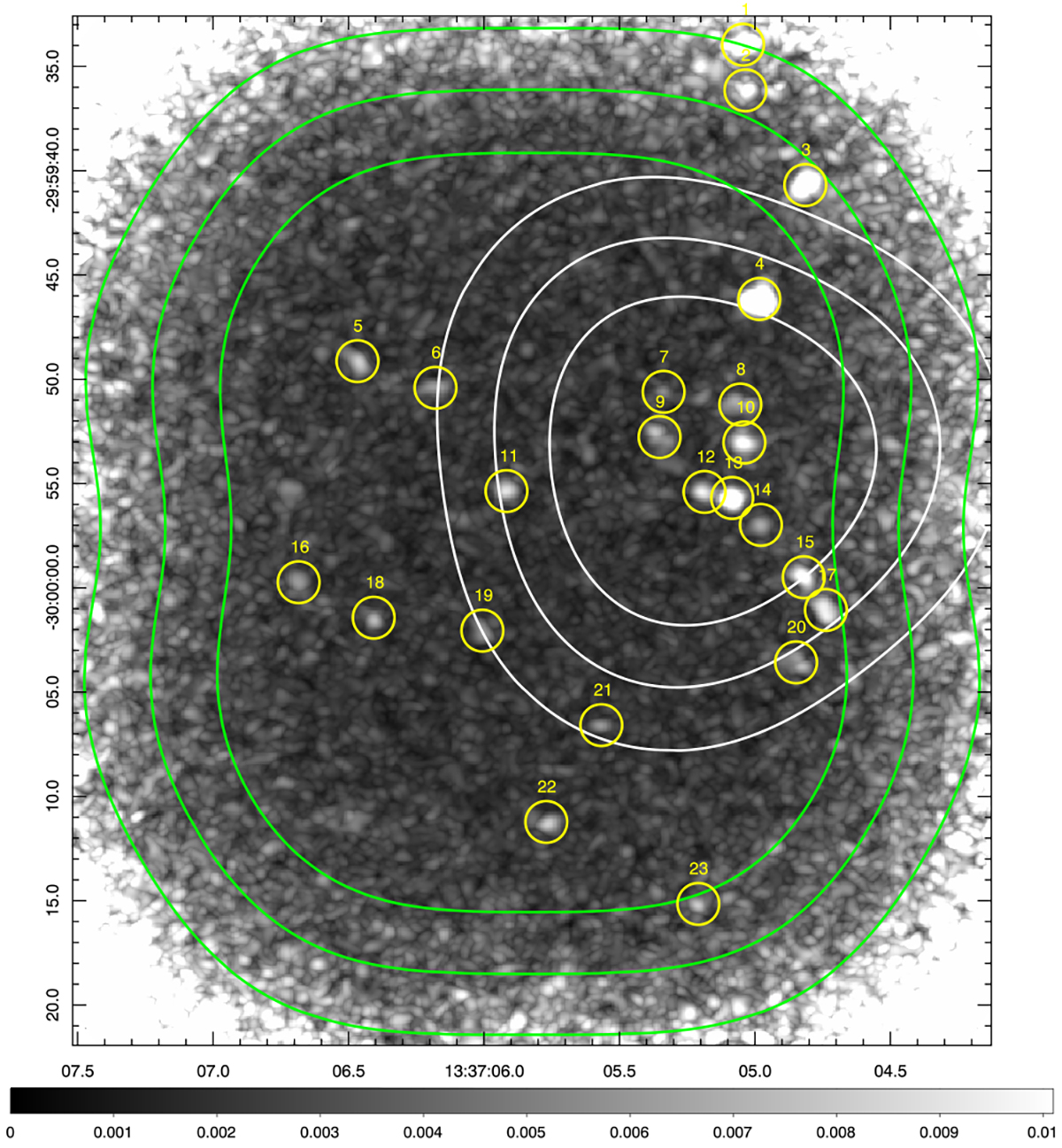

Field of view (FoV) of Cy9 (white contours) with respect to that of Cy7 (green), displayed on the CO(3–2) peak intensity map of the Cy7 data imaged with natural weighting (CY7NA). The FoV center of Cy9 is at (RA, Dec)J2000 = (13:37:05.18, −29:59:53.6). The sensitivity decreases outward from the centers for both FoVs, and the contours show the locations of 70, 50, and 30% of the peak sensitivity for the Cy7 (green) and 9 data (white). The 11 clouds within the 50% white contour are the focus of this paper. The yellow circles have 2″ (44 pc) diameters and mark the locations of the 23 molecular clouds in Koda et al. (2022). The colorbar is in units of Jy/beam.
