Fig. 8
Download original image

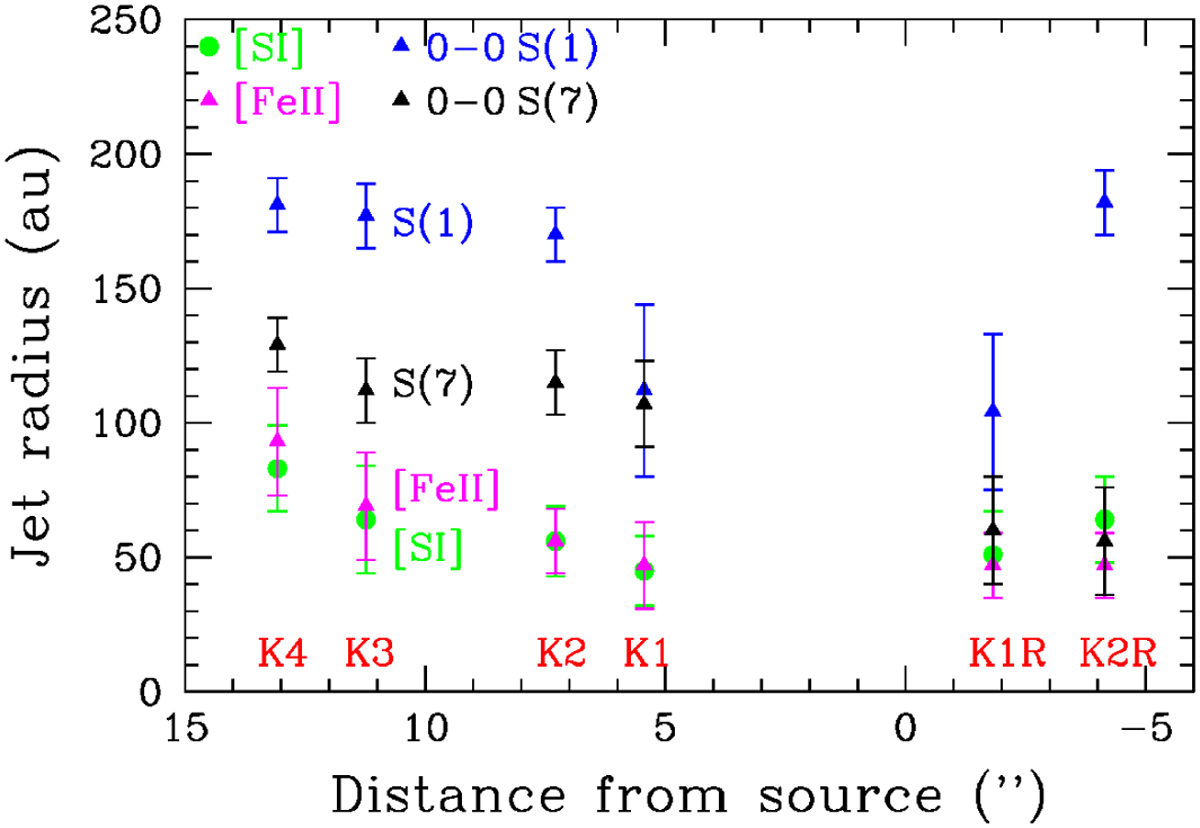

Inferred jet radius (in au) vs. distance (in arcseconds) from the source for different lines. Green dots, magenta triangles, and blue and black triangles show [S I], [Fe I] (at 26 µm), H2 0-0 S(1), and S(7) lines, respectively. Knot identification is displayed in red.
