Fig. 8.


Download original image

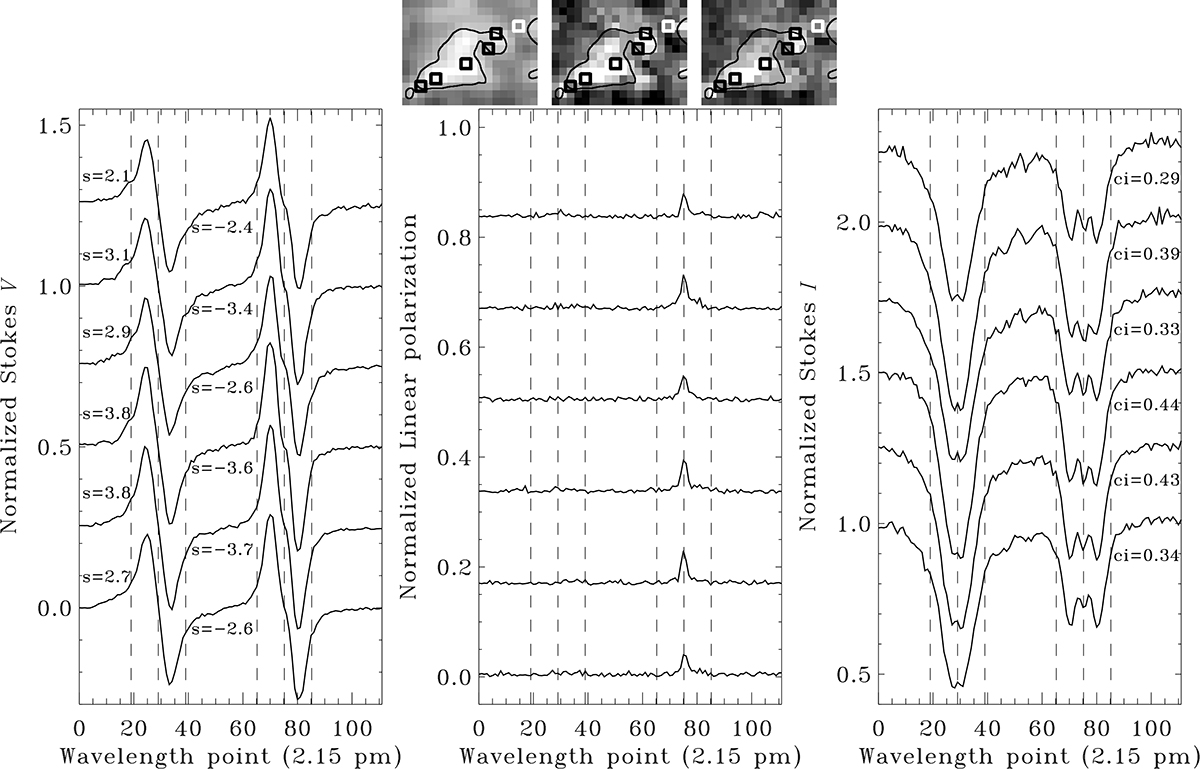

Similar to Fig. 4 for area C5. The size of the whole selected area is 14 × 9 pixels, equivalent to 2.1 × 1.4 arcsec2. Stokes profiles drawn from bottom to top correspond to the pixels running from lower-left corner to upper-right corner. For a better comparison, the Stokes profiles in the panels of the lower row have been moved up with a fixed step of 0.25, 0.17, and 0.25, from the left to the right panel, respectively.
