Fig. L.3.


Download original image

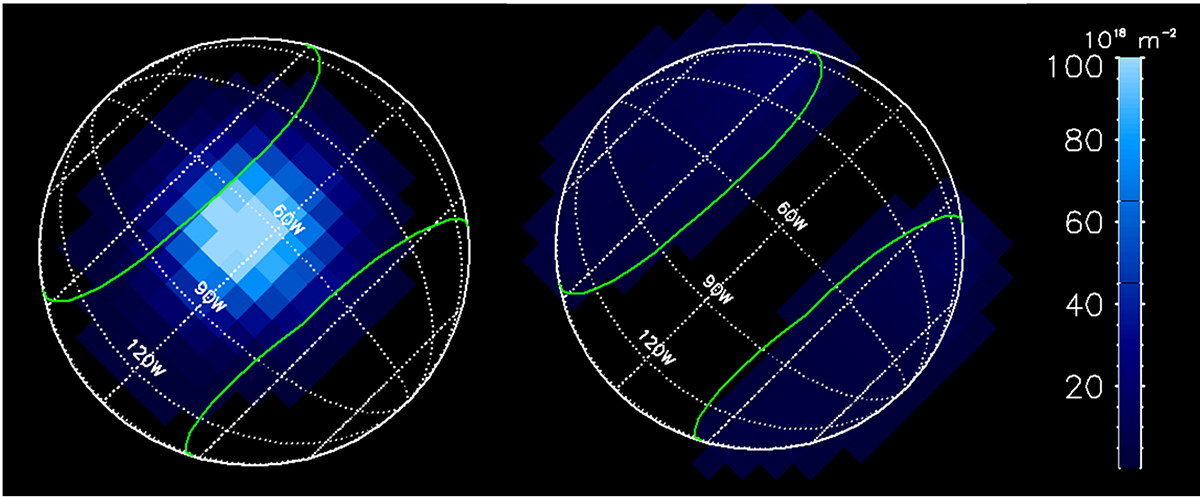

Calculated line-of-sight column-density maps of the H2O exosphere of Ganymede (in 1018 m−2). The green lines display the boundary between open and closed field lines (OCFBs). Left panel: sublimation only source. Right panel: sputtering only source with fc = 382. The H2O areal surface fraction is set to qH2O = 20%. The subsolar point is at 2.6°N, 82°W.
