Fig. B.1.

Download original image

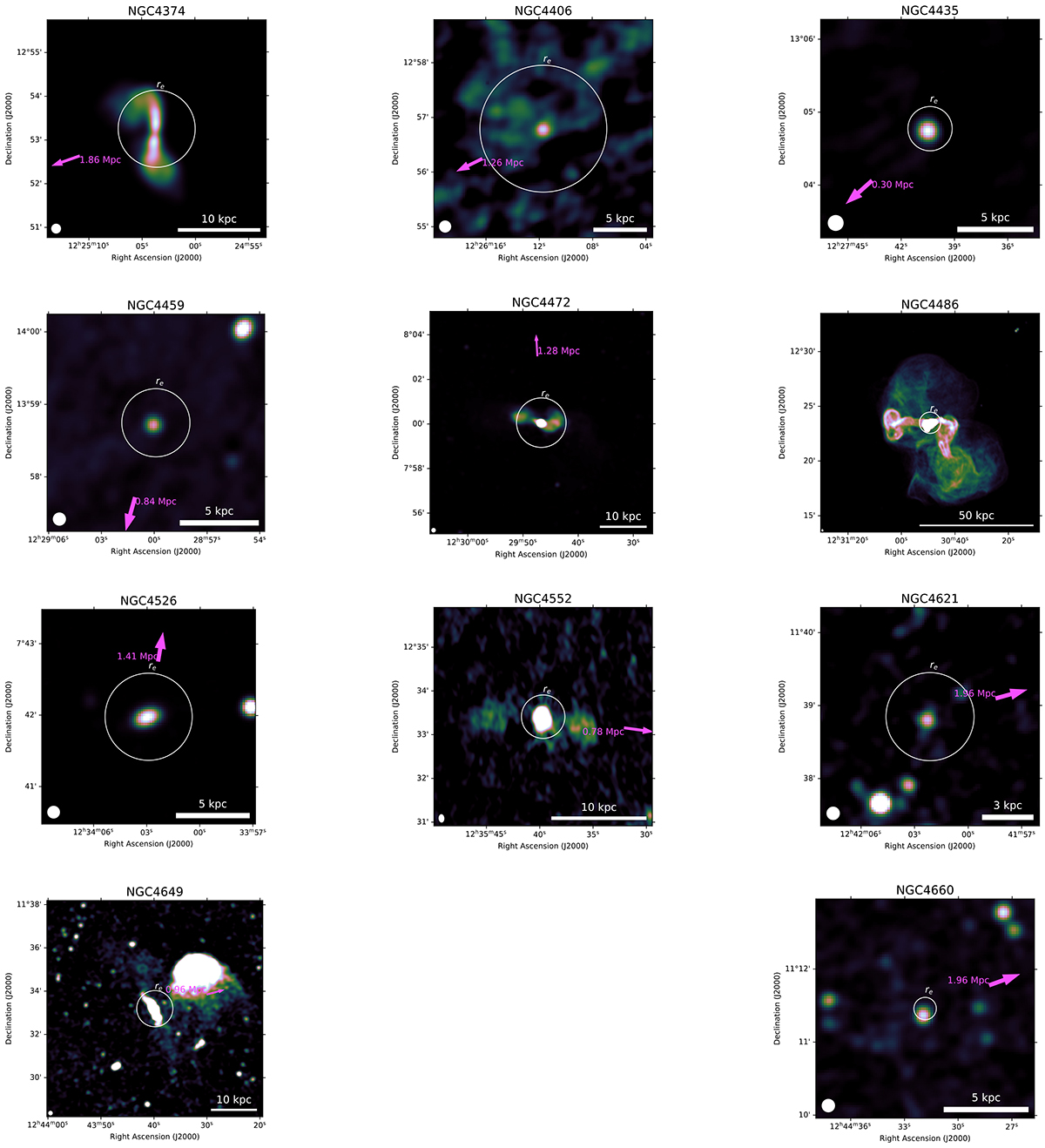

MeerKAT image at 1.28 GHz of 11 of the 12 sources from the sample covered by MeerKAT observations. As before, each source is overlaid with the half light radius in the r band of its host galaxy (white circle) taken from Kim et al. (2014). The pink arrow in each image marks the direction and physical distance towards the centre of the Virgo cluster (NGC 4486). The ellipse in the lower left corner indicates the beam size between 9.7″ and 12.7″
