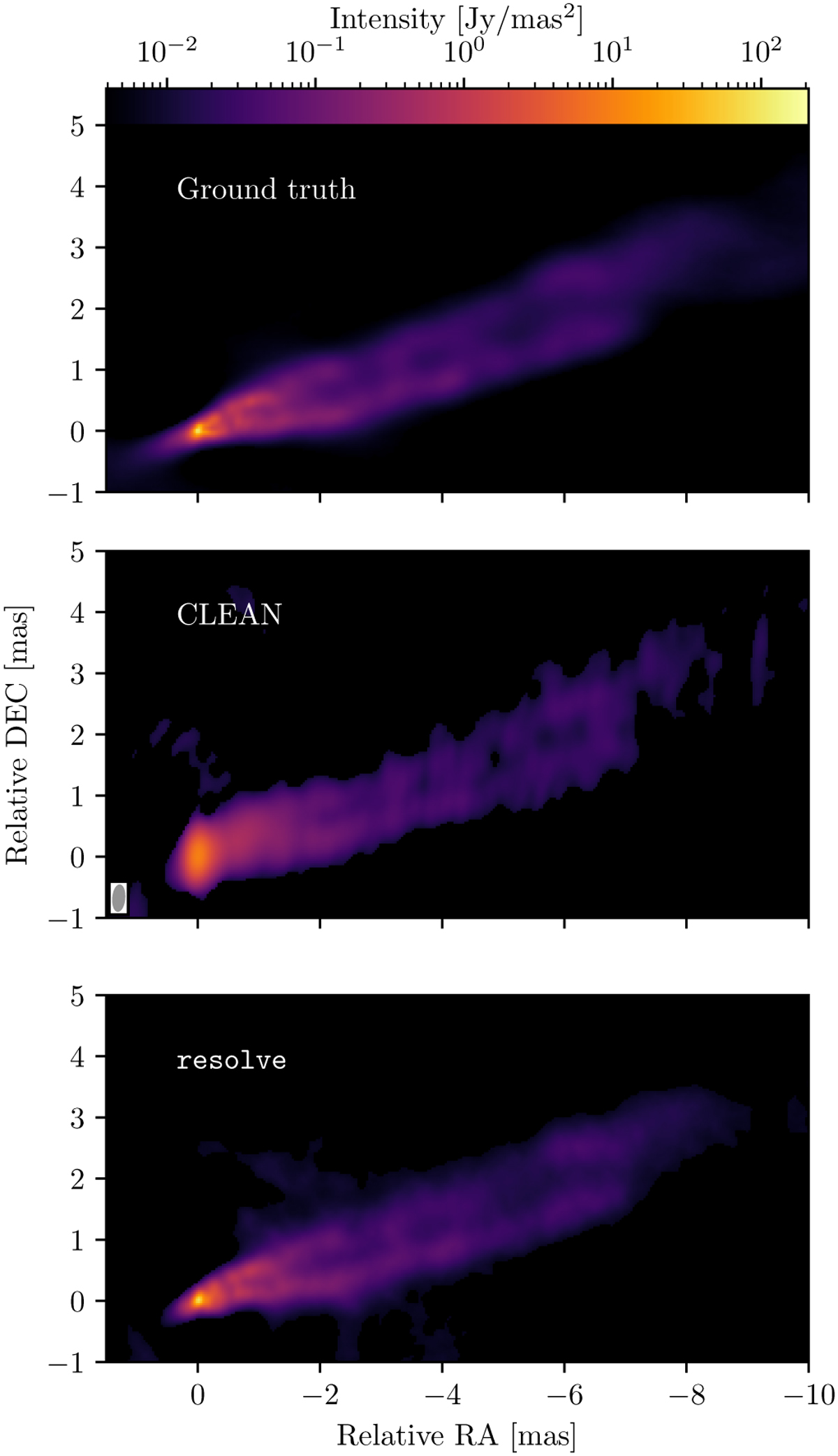

Synthetic data: ground truth (top) and reconstructed images obtained using CLEAN (middle) and resolve (bottom) self-calibration. The restoring CLEAN beam illustrated in the bottom left corner of the plot is 0.5 × 0.2 mas, PA = −5°. All images in the figure were masked at 3σrms level of a corresponding image. The unified color bar on the top of the figure shows an intensity range of the ground truth (GT) image, where maximum intensity is ImaxGT=209 Jy mas2$I_{{\rm{max}}}^{{\rm{GT}}} = 209\,{\rm{Jy}}\,{\rm{ma}}{{\rm{s}}^{ - 2}}$, the rms noise level is σrmsGT=1 mJy mas2$\sigma _{{\rm{rms}}}^{{\rm{GT}}} = 1\,{\rm{mJy}}\,{\rm{ma}}{{\rm{s}}^{ - 2}}$. The noise level of the reconstructed images are σrms CLEAN=3 mJy mas2,σrms resolve =2 mJy mas2$\sigma _{{\rm{rms }}}^{{\rm{CLEAN}}} = 3\,{\rm{mJy}}\,{\rm{ma}}{{\rm{s}}^{ - 2}},\sigma _{{\rm{rms }}}^{{\rm{resolve }}} = 2\,{\rm{mJy}}\,{\rm{ma}}{{\rm{s}}^{ - 2}}$. Maximum intensity values are ImaxCLEAN=10 Jy mas2,Imaxresolve=111 Jy mas2$I_{\max }^{{\rm{CLEAN}}} = 10\,{\rm{Jy}}\,{\rm{ma}}{{\rm{s}}^{ - 2}},I_{\max }^{{\rm{resolve}}} = 111\,{\rm{Jy}}\,{\rm{ma}}{{\rm{s}}^{ - 2}}$ correspondingly.
