Fig. 4.

Download original image

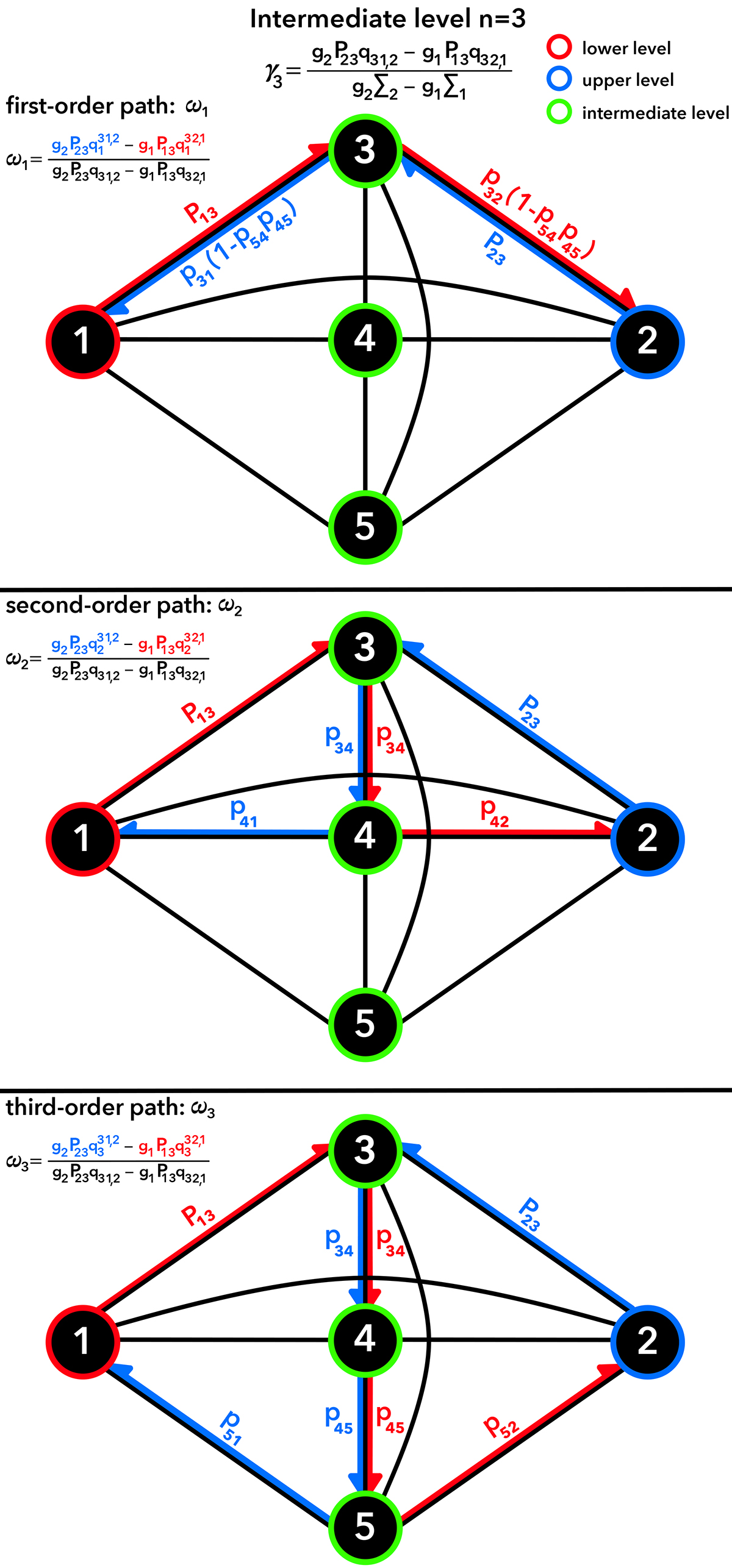

Possible higher-order paths through a five-level atom. Three possible paths are shown for the Ly-α transition through the intermediate level n = 3 expressed by γ3. The green lime color highlights the different intermediate levels. Red arrows indicate the paths from the lower level n = 1 to the upper level n = 2. Blue arrows indicate the paths from the upper to the lower level. Upper panel: first-order paths indicated by ω1 with and
. Middle panel: second-order paths indicated by ω2 with
and
. Bottom panel: third-order paths indicated by ω3 with
and
.
