Fig. 2
Download original image

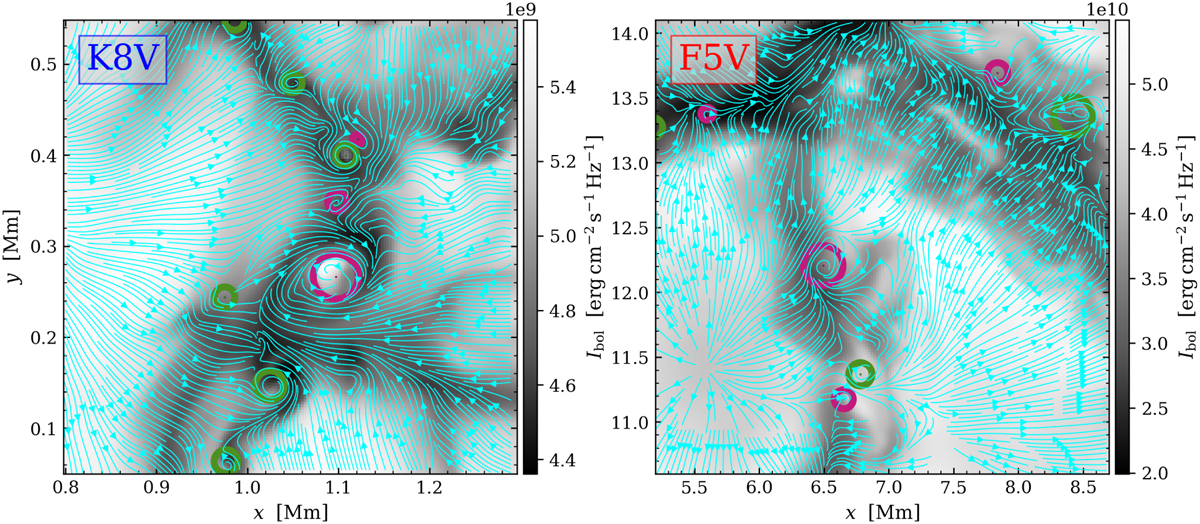

Identified swirls in the areas marked in blue in Fig. 1 for the K8V and F5V models. Clockwise and counterclockwise vortices identified by the SWIRL algorithm are indicated by pink and green disks, respectively. The horizontal component of the velocity field is represented by blue instantaneous streamlines.
