Fig. 9.
Download original image

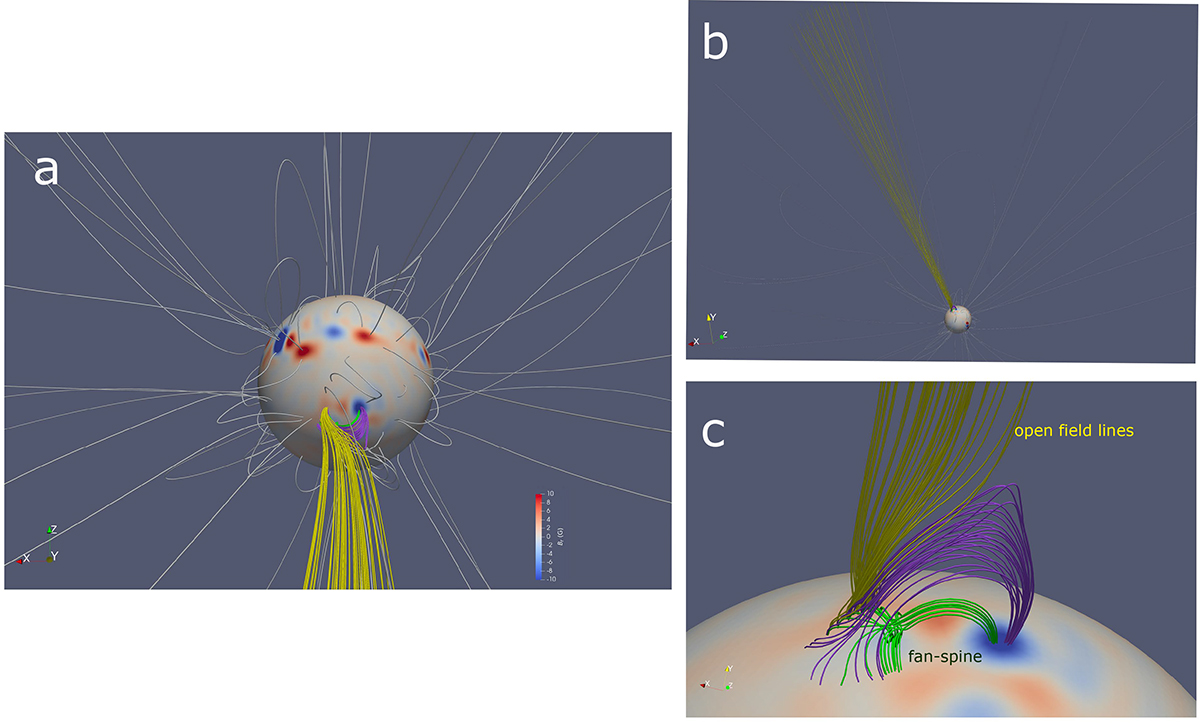

Global coronal modeling with COCONUT of the AR environment, showing the reconnection with open field lines in the region of the dimming. The fan-spine structure (green tubes), overlying closed arcades (purple tubes), and the open field lines (yellow tubes) are presented. Panels b and c have been rotated by 180° to show the open field lines.
