Fig. D.3
Download original image

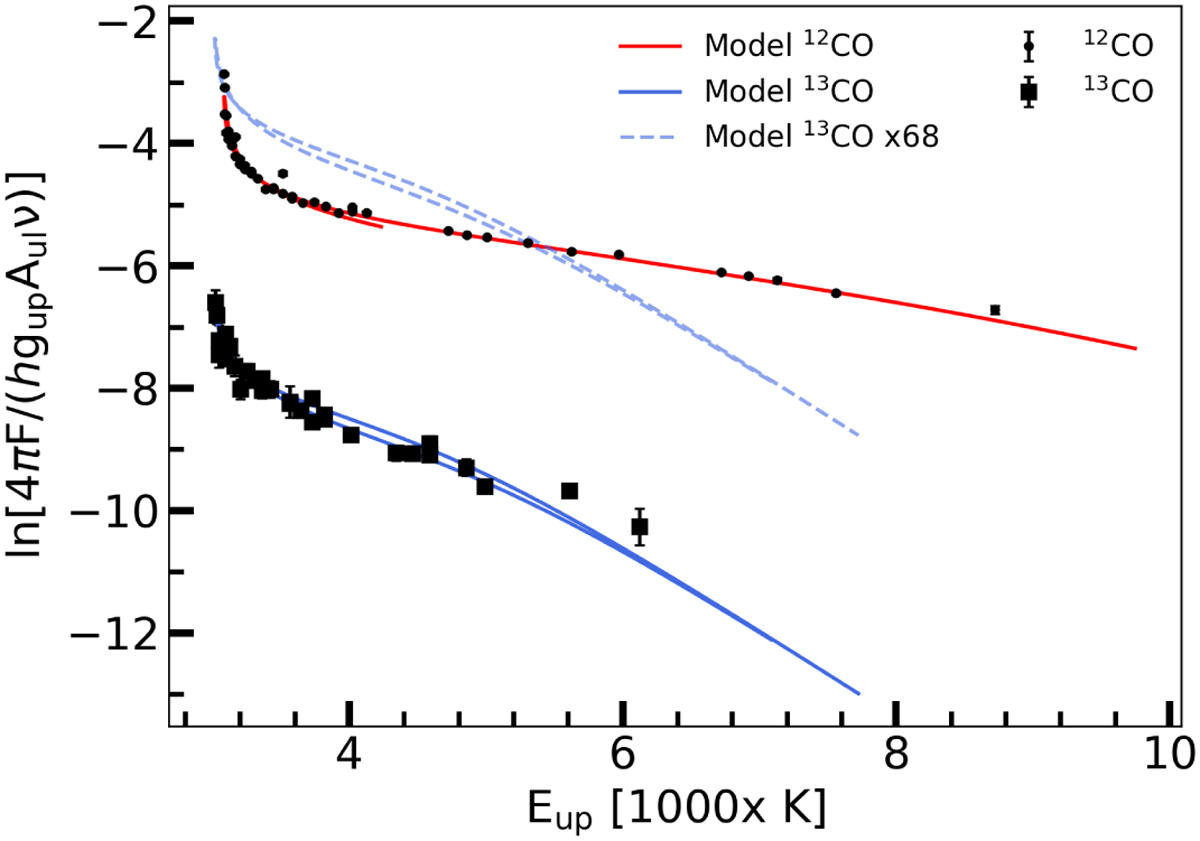

Rotational diagrams for 12CO v=1-0 (dots) and 13CO v=1-0 (squares). The dashed blue line indicates the model of 13CO (T = 750 K) multiplied by a factor of 68 to account for the isotopologue ratio. The fluxes shown for the 12CO are a summation of the narrow (T = 1000 K) and broad (T = 1725 K) components.
