Fig. 3
Download original image

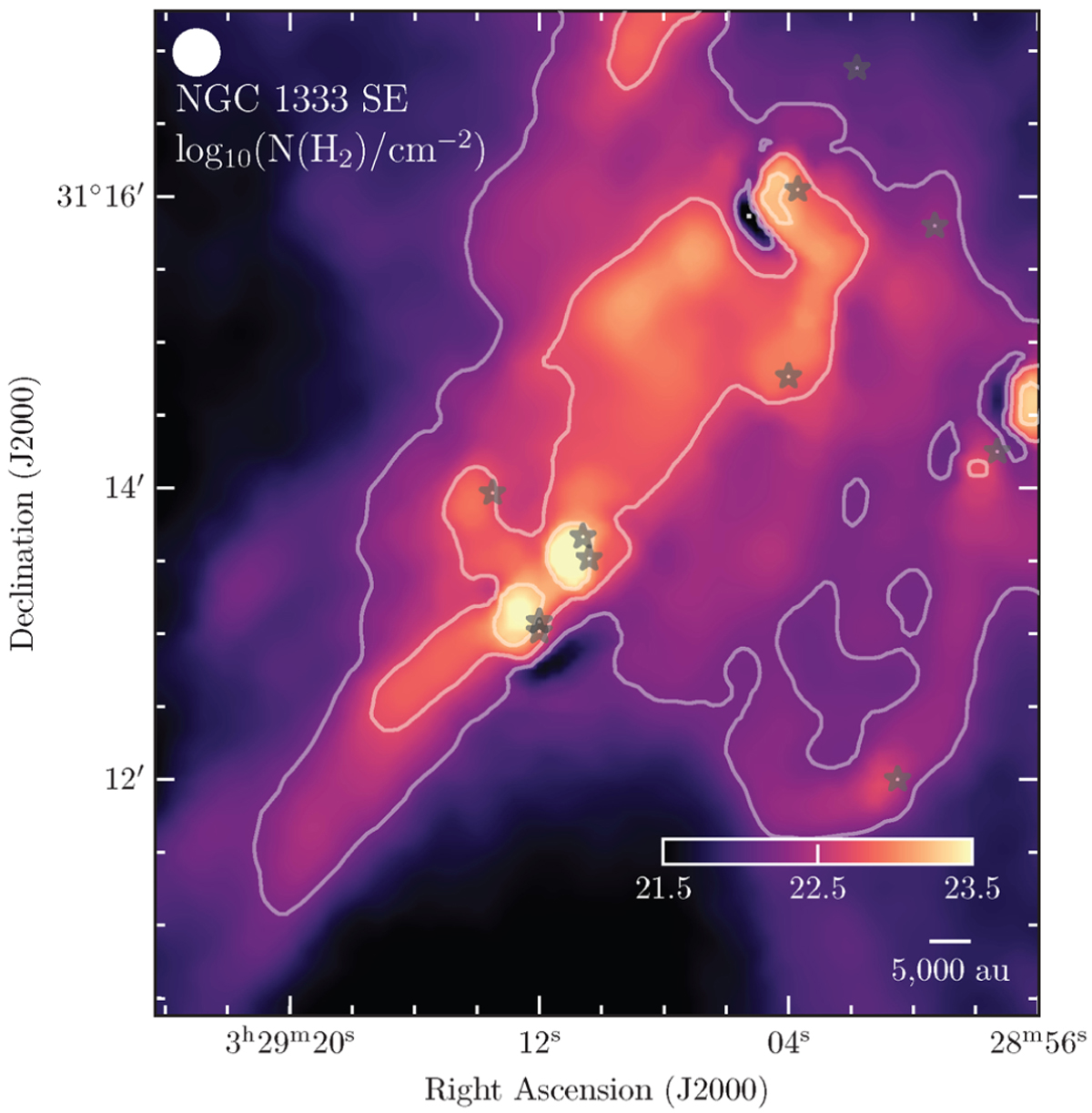

Map of the Herschel-based H2 column map, N(H2). The contours are drawn starting at log10(N(H2)) = 22.2 and with a step between levels of 0.5 dex. These contours are the same as in Fig. 2. The beam size and scale bar are shown in the top left and bottom right, respectively.
