Fig. 10
Download original image

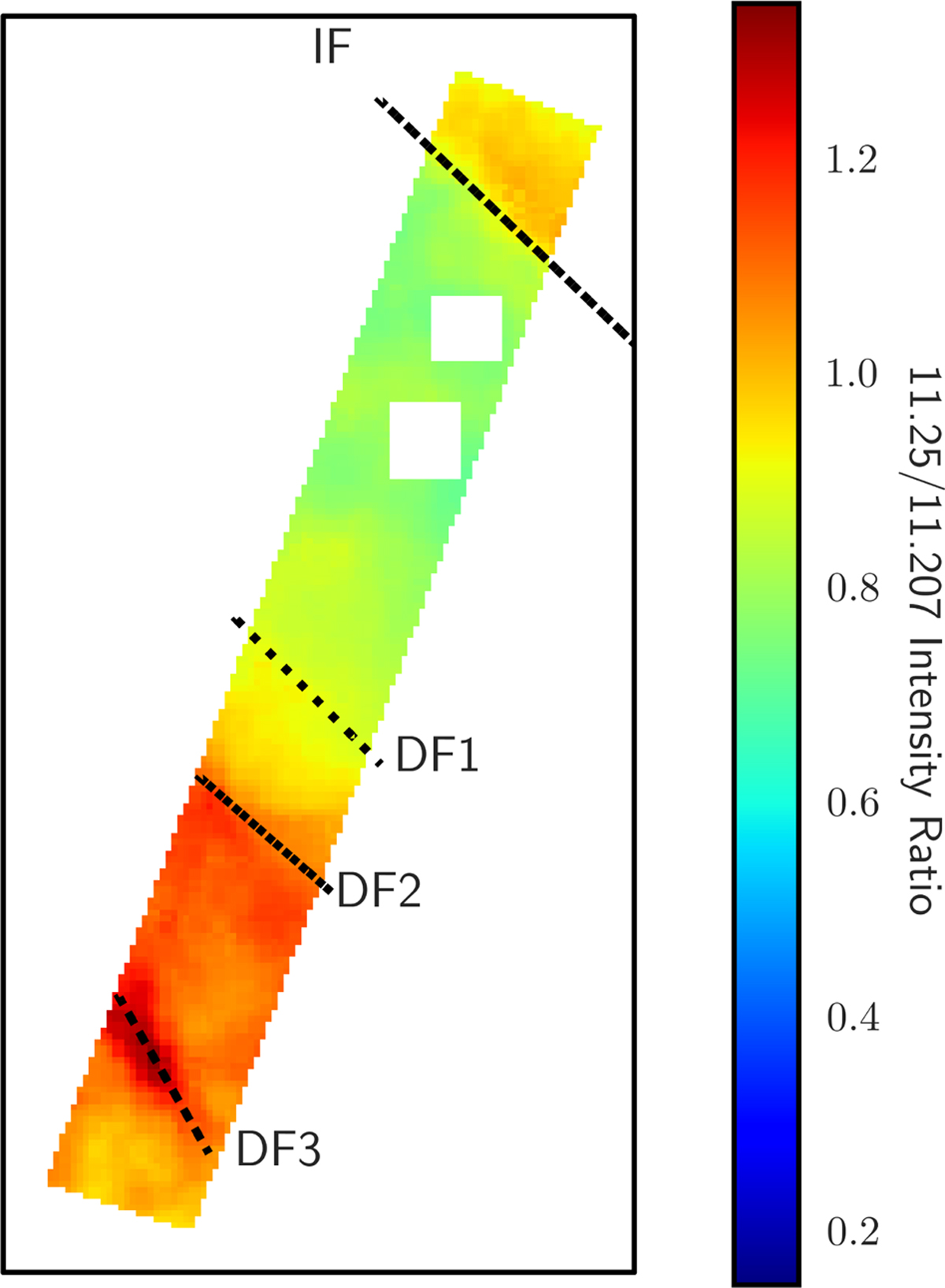

Spatial morphology of the 11.25/11.207 intensity ratio (i.e. the ratio of the surface brightness at 11.25 μηι to the surface brightness at 11.207 μm after continuum subtraction). The 11.25 μm component dominates over the 11.207 μm component in the deeper regions of the PDR, past DF 1, especially in DF 3.
