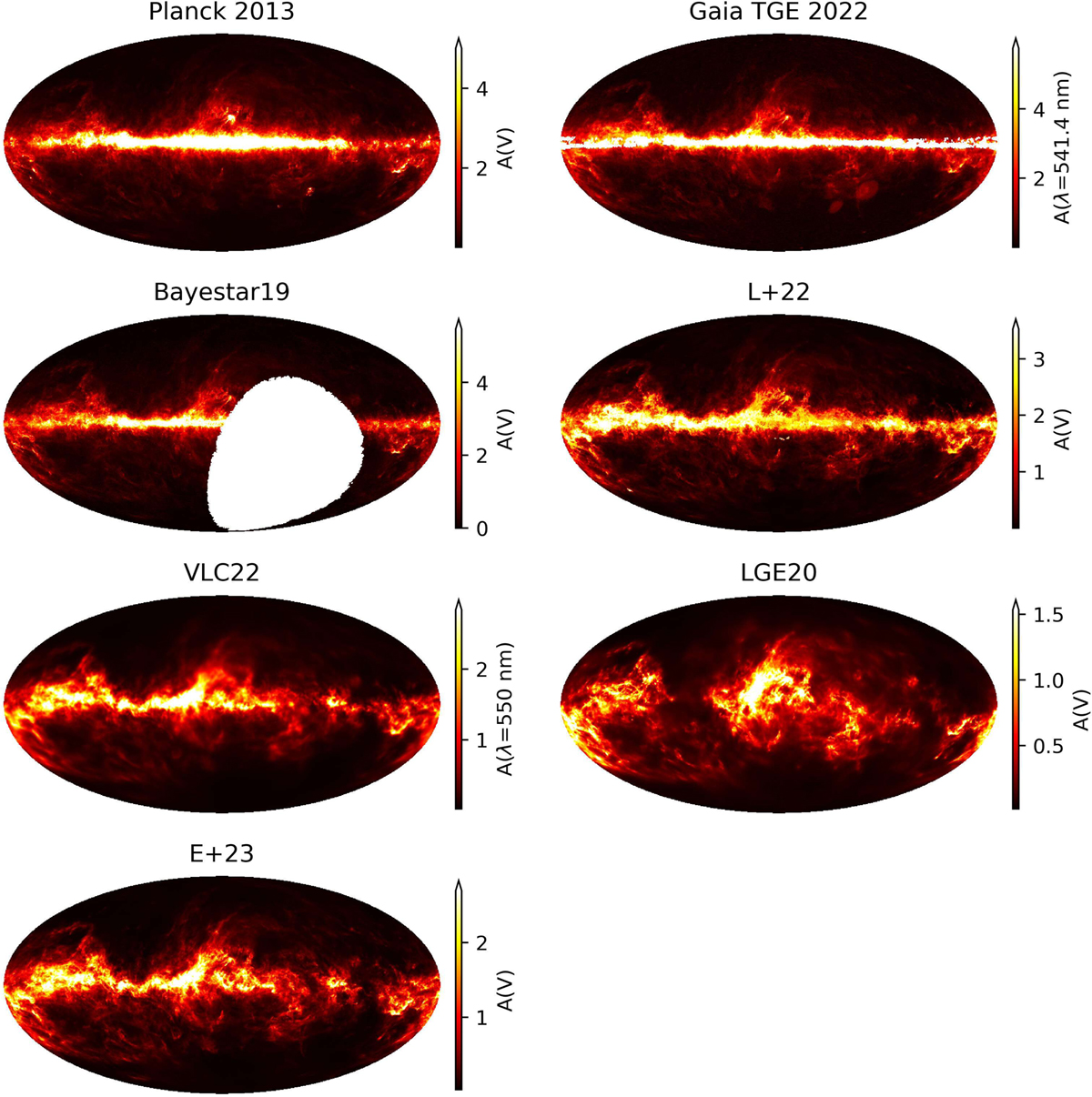

Fig. 11

Download original image
Mollweide projections of total integrated extinction and 3D extinction maps integrated out the maximum distance of the respective map. Bayestar19 reconstructs up to a maximum distance of 63 kpc (maximum reliable distance 10 kpc) and is integrated out to that volume. L+22 reconstructs up to a maximum distance of 16 kpc but the authors trust their map only out to 4 kpc and we integrate their map only to 4 kpc. VLC22 reconstructs a heliocentric box of size 3 kpc × 3 kpc × 800 pc with 103 pc3 voxels with at most <2.16 kpc in distance and is integrated out to the end of the box. Likewise, LGE20 reconstructs a heliocentric box of size |X| < 370 pc, |Y| < 370 pc, |Z| < 270 pc covering at most <590 pc in distance and is integrated out to the end of the box. The colorbars saturate at the respective 99% quantile of the map except for the colorbar of Planck 2013, which saturates at 5 mag for better comparability.
