Fig. 7
Download original image

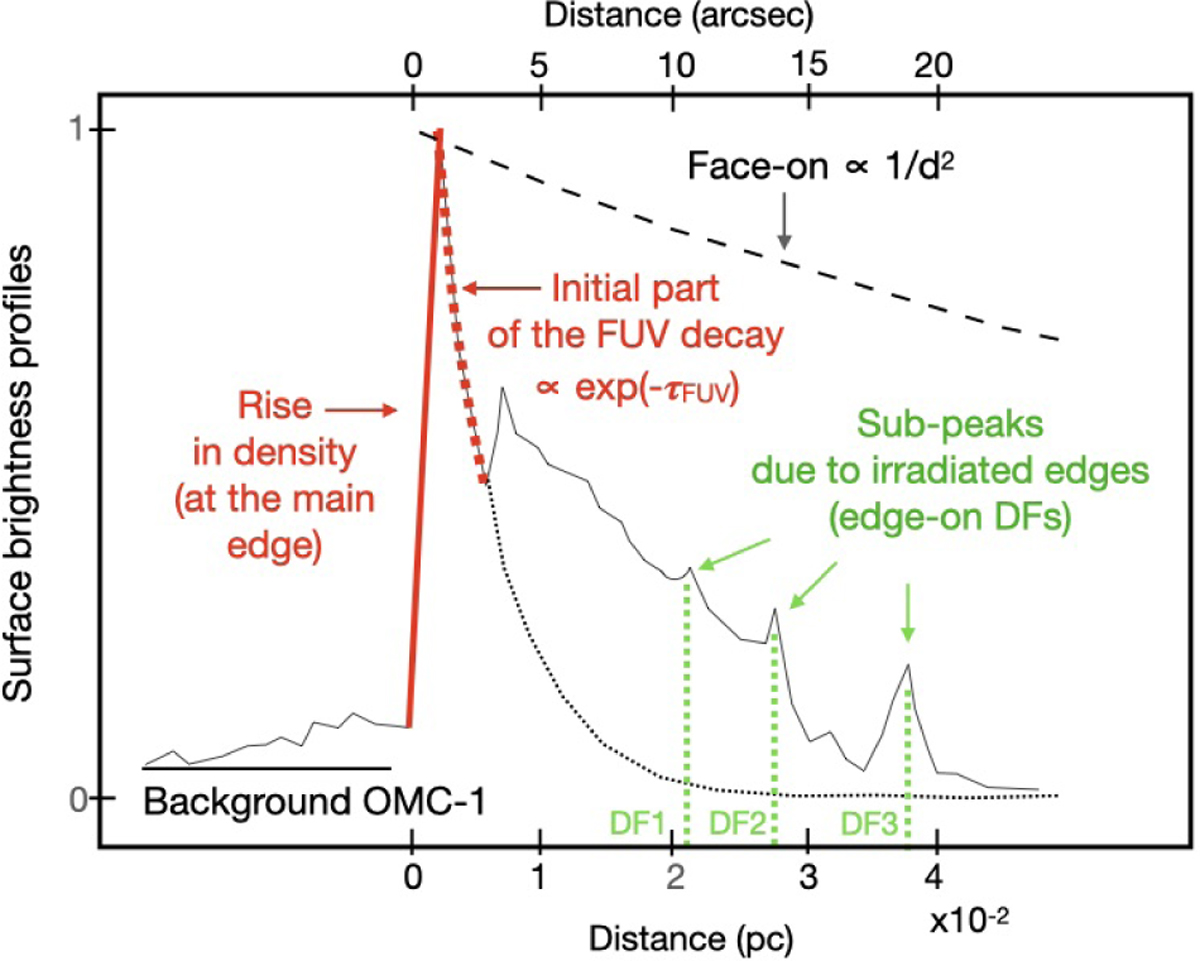

Annotation of the different components seen in the AIB surface brightness profile perpendicular to the Bar. These are shown for cut 2 in filter F333M from Fig. 6, where several other cuts through the Bar are shown.
