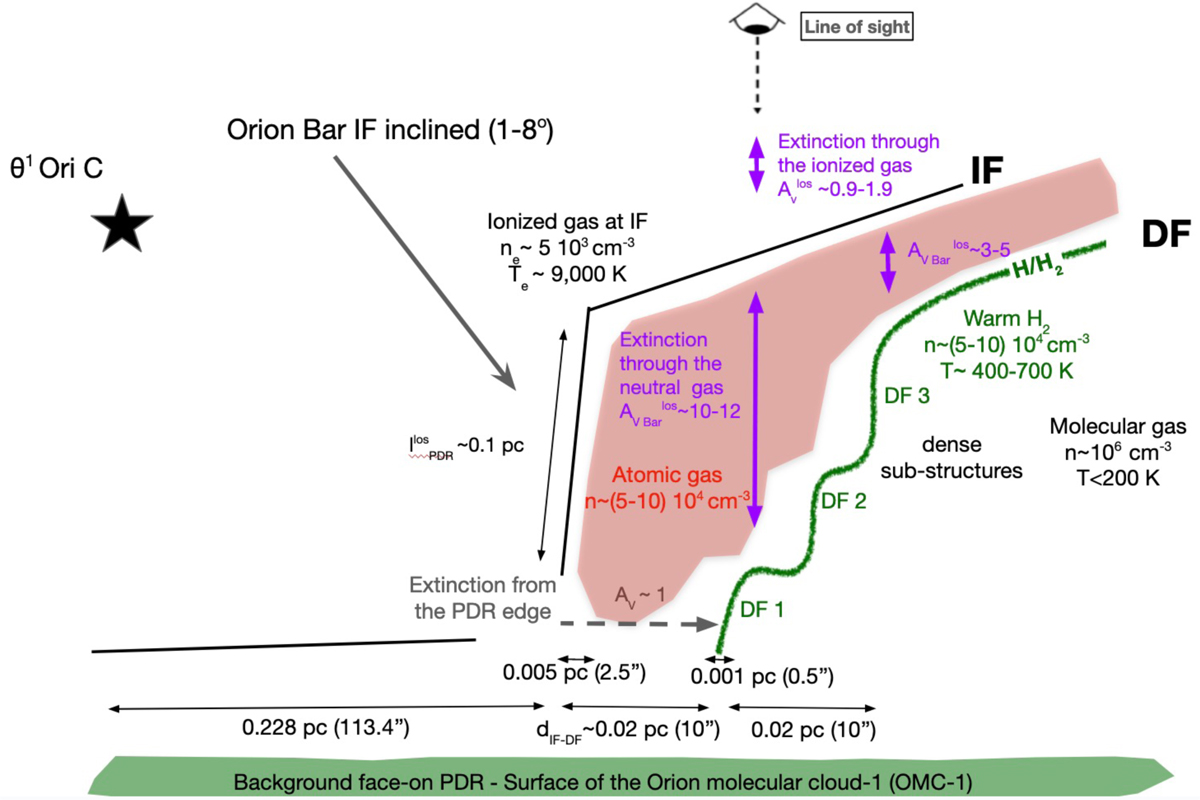

Schematic view of the Bar inferred from JWST and previous observations from visible to mm (e.g., Jansen et al. 1995; Wen & O’Dell 1995; O’Dell 2001b; Pellegrini et al. 2009). It displays the main features discussed in detail in the core of this article, and inferred from both the imaging observations (this work) and NIRSpec spectroscopic observations (Peeters et al. 2023). We note that for clarity the dimensions perpendicular to the Bar are not to scale, the true spatial scales being explicitly given in the annotations. The adopted distance to the Bar is 414 pc. In addition, the sketch does not include foreground material, which includes a layer of ionized gas (O’Dell et al. 2020) and, closer to the observer, layers that are grouped together under the designation as the Veil (e.g., van der Werf et al. 2013; Pabst et al. 2019, 2020).
