Fig. 5

Download original image

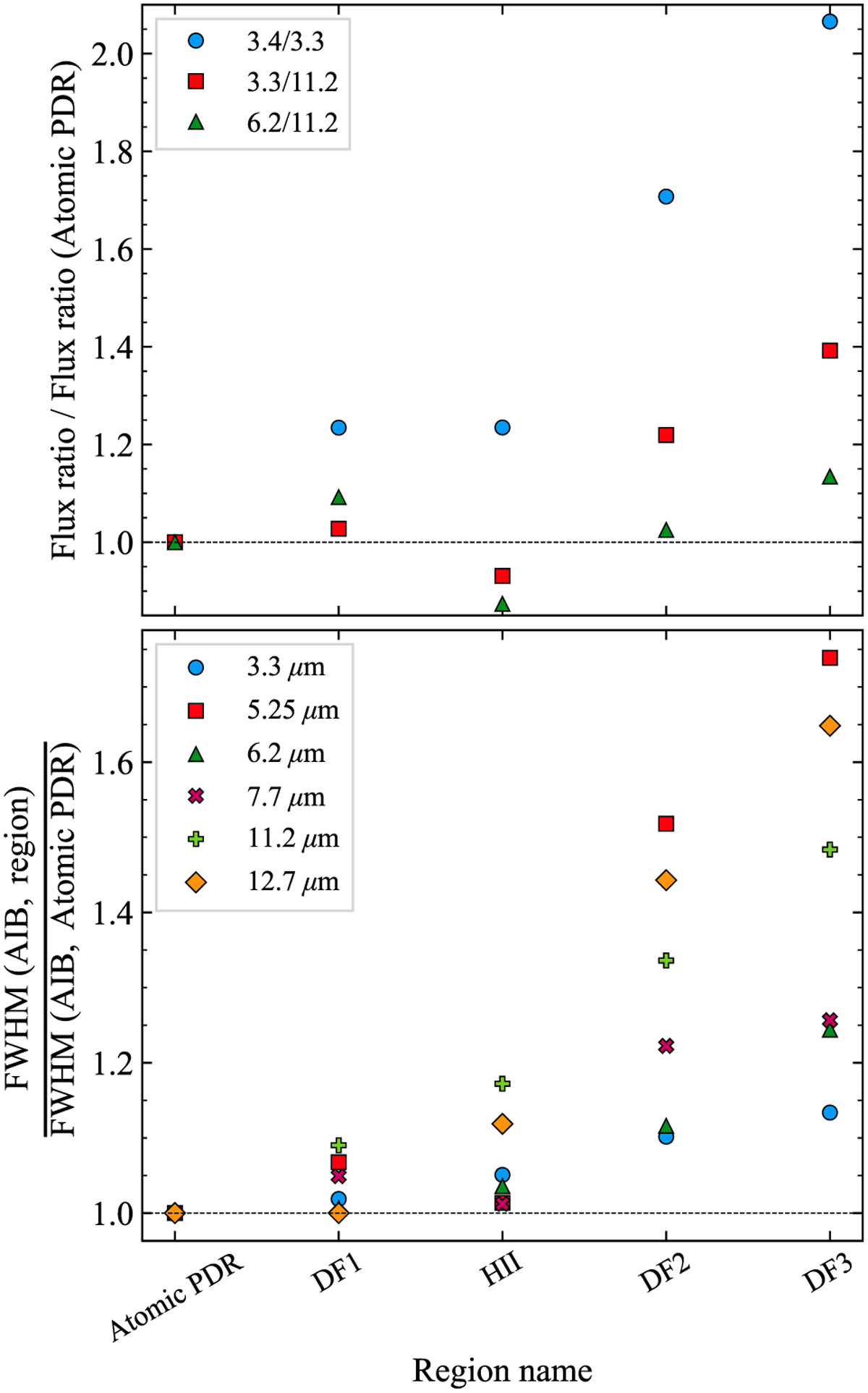

Variation from region to region in the ratios of AIB integrated fluxes (top) and the widths of AIBs (bottom; data from Table 1). All values are normalised to those from the atomic PDR. The ordering of the regions on the x-axis is arbitrary, but was chosen so that the data roughly show an increasing trend in FWHM from left to right (Sect. 4.3).
