Fig. 2

Download original image

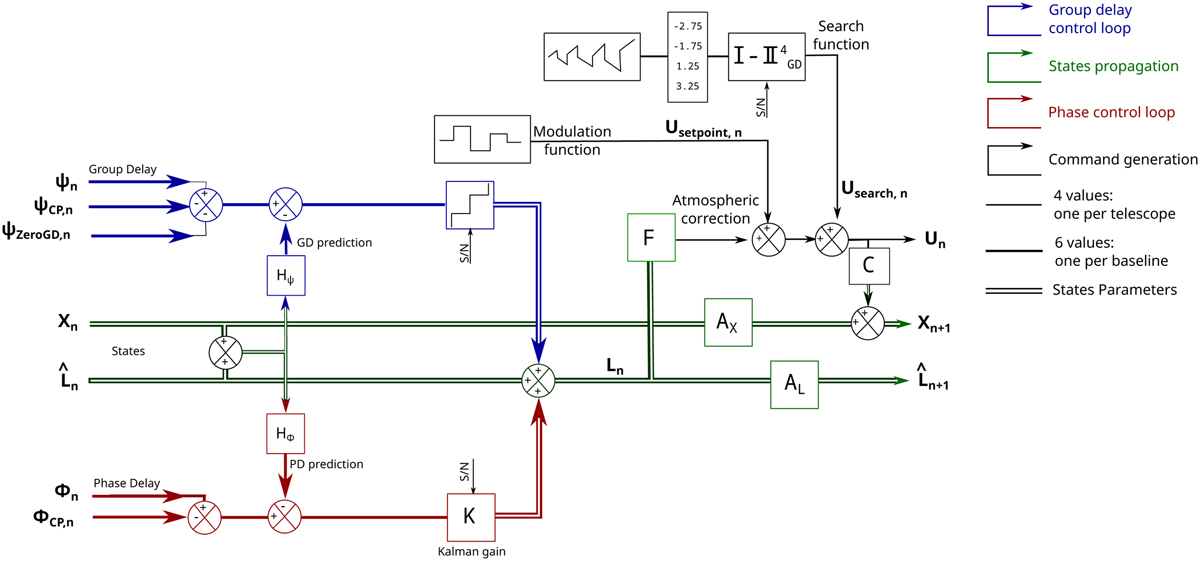

Block diagram of the GRAVITY fringe-tracking controller within a single integration time, denoted n. The parameter states, illustrated in green, are central to the fringe tracker. They represent the disturbance conditions (Ln) and actuator positions (Xn). The blue segment indicates the group-delay feedback applied to the disturbance state, the red segment denotes the phase-delay feedback on Ln, and the black segments represent the command send to the actuators.
