Fig. 1


Download original image

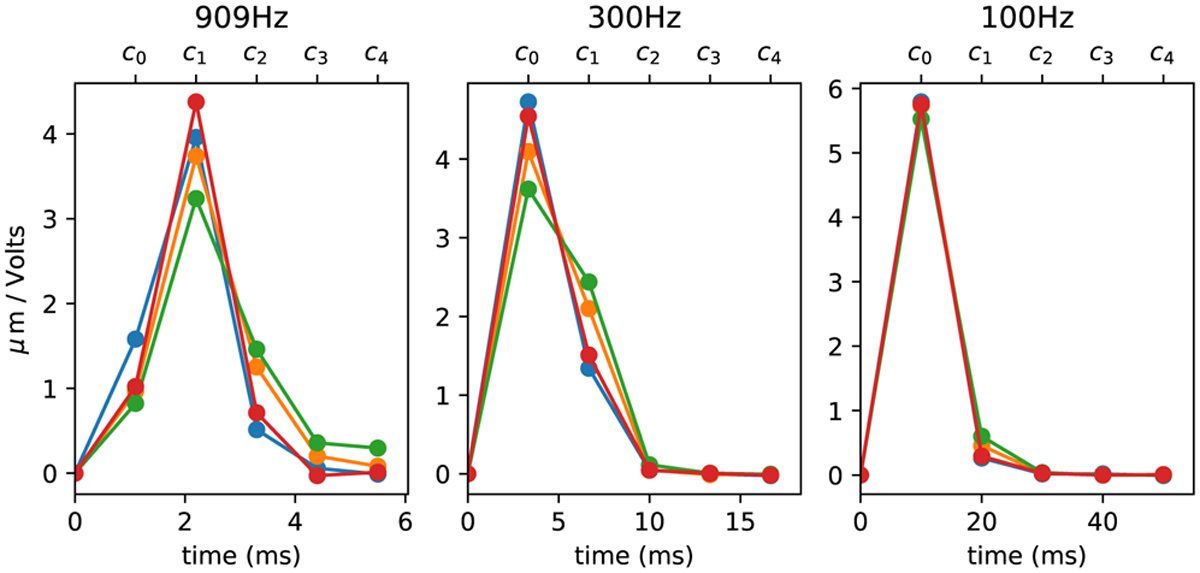

Open-loop response of the piezo control chain. This corresponds to the response of the piezo in micrometers per volt as a function of time (bottom axis) when submitted to an impulse command. Equivalently, this also gives the values of the coefficients of the fifth-order model used in Eq. (20) (top axis). Each colour represents a distinct actuator.
