Fig. 5

Download original image

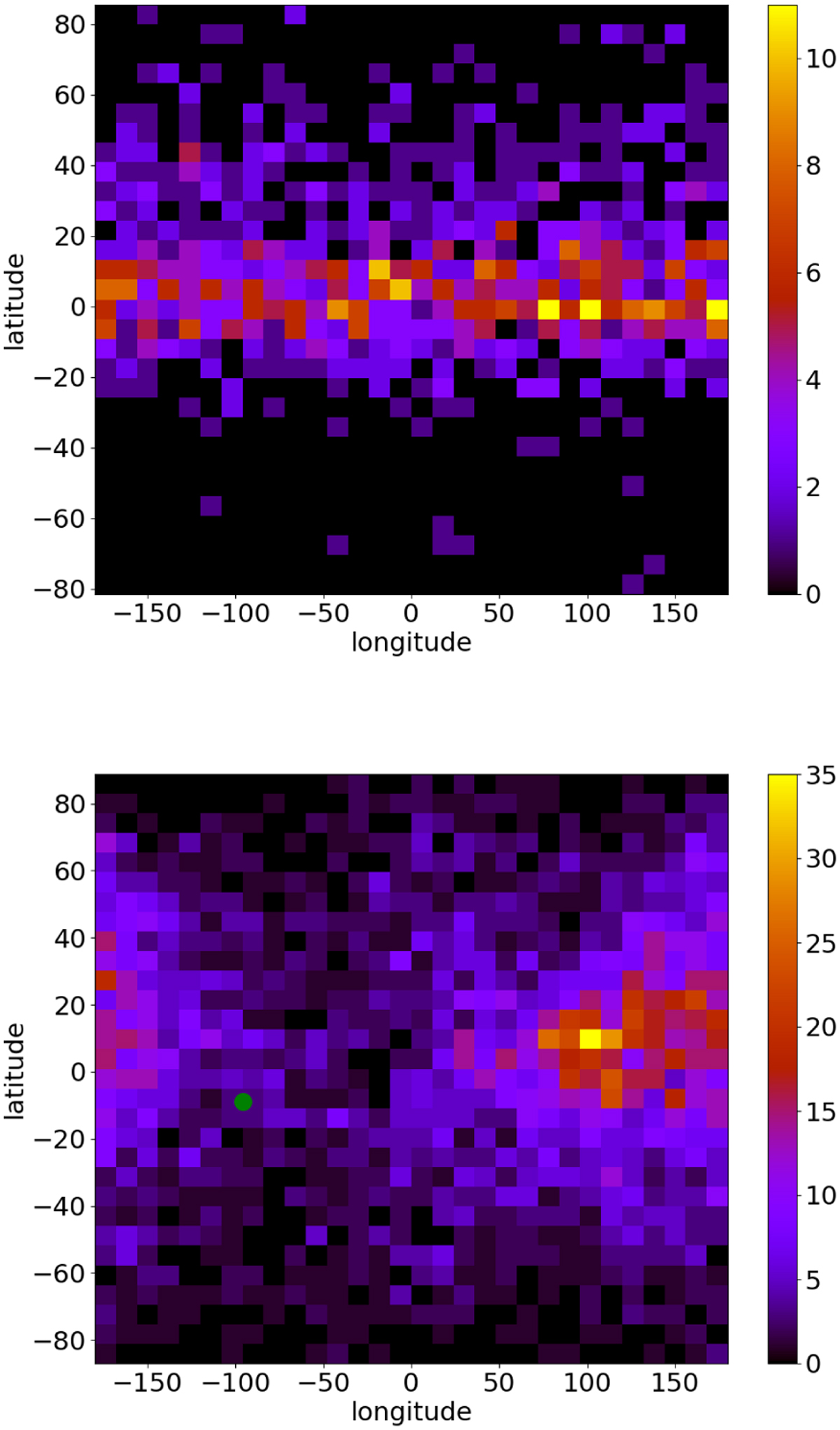

Location of re–impacts on Didymos (top) and on Dimorphos (bottom). Only the re-impacts occurring later than 24 h after DART impact are included. On the bottom, the green dot marks the DART impact location and the (0°,0°) point is the direction towards Didymos, and the north pole (+90° latitude) is in the direction of the rotation axis, while the other one (−90°,0°) is the direction of the Dimorphos orbital motion. Most of the re-impacts are concentrated near the point (90°,0°) that is opposite the direction of orbital motion of Dimorphos and almost opposite the DART impact location.
