Fig. A.2.


Download original image

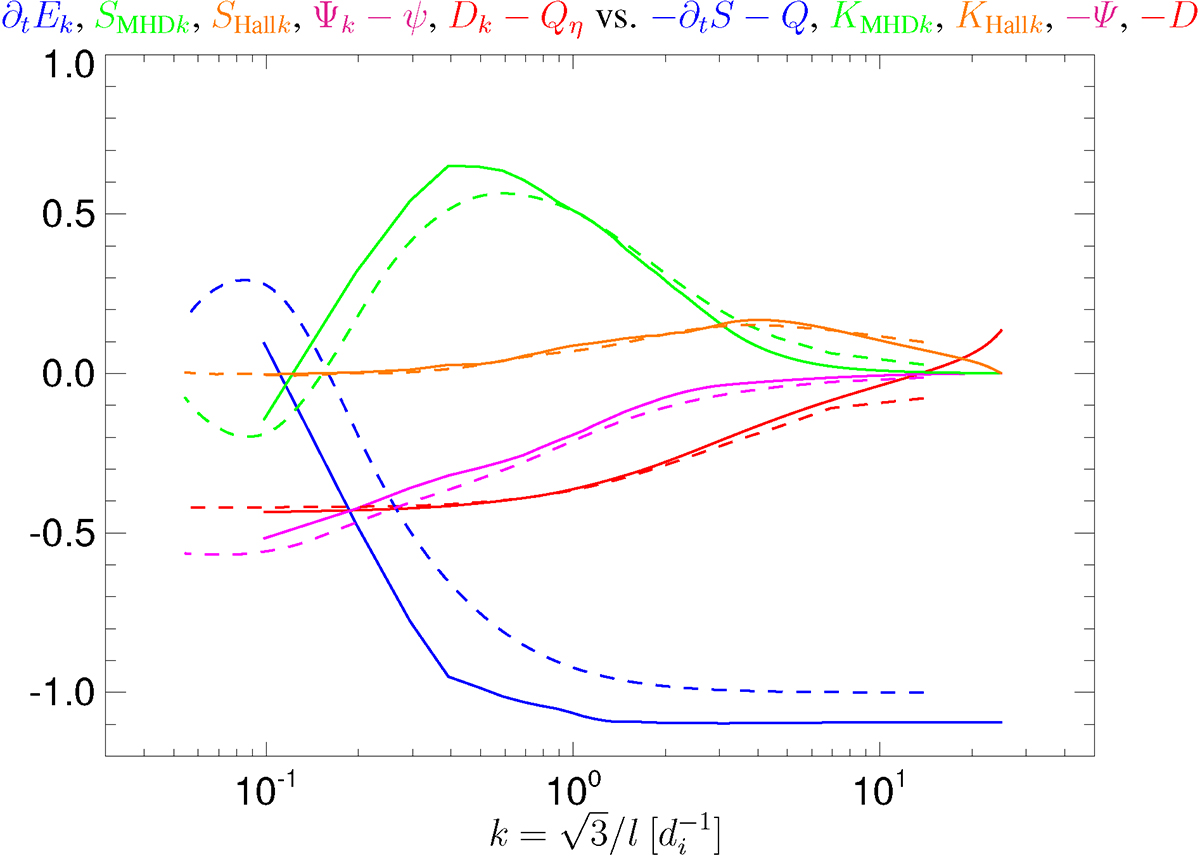

Comparison between the ST and KHM approaches. The solid lines show the contributing terms of the ST equation as a function of k: (blue) the decay rate ∂tEk, (green) the MHD cascade rate SMHDk, (orange) the Hall cascade rate SHallk, (red) the dissipation rate Dk − Q, and (magenta) the pressure–strain rate Ψk − ψ. The dashed lines show the corresponding results of the KHM equation function of k through the relation : (blue) the decay rate −∂tS − Q, (green) the MHD cascade rate KMHD, (orange) the Hall cascade rate KHall, (red) the dissipation rate −D, and (magenta) the pressure–strain rate −Ψ. All the quantities are given in units of the total (effective) dissipation rate Q.
