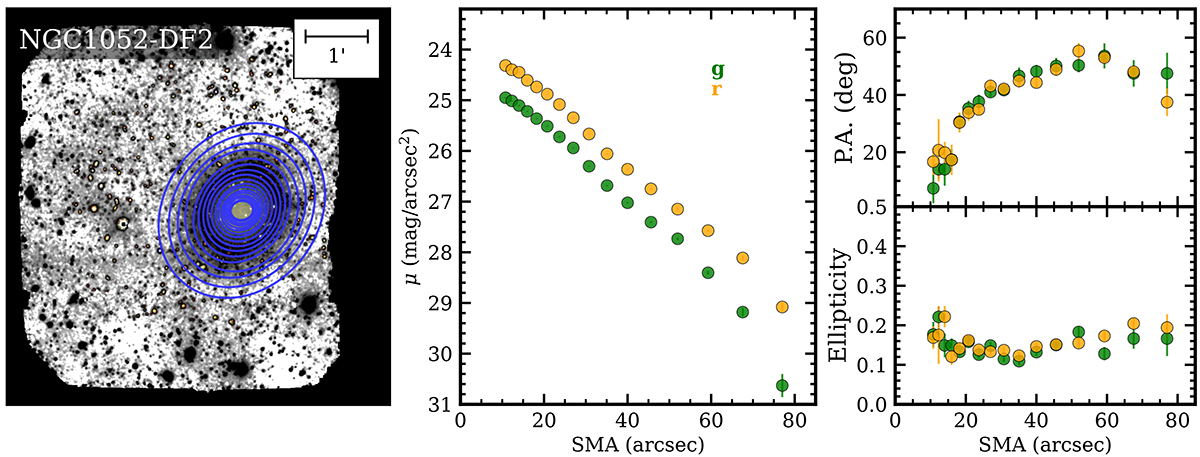

Fig. B.1.

Download original image
Surface brightness, ellipticity, and PA radial profiles of NGC1052-DF2 obtained with the ellipse routine. The profiles are obtained for both the g and r bands. Left panel: Shape of the ellipses used to compute the profiles over a grayscale background image of g- + r- Sloan Gemini data. The color part of the stamp is created using rescaled HiPERCAM data from Montes et al. (2020) using the g, r, and z filters. Middle panel: g-band (green) and r-band (orange) surface brightness profiles. Errors associated with the surface brightness profiles are computed as explained in Sect. 3.1.1. Right panel: Radial profile of the PA and ellipticity for the two filters separately down to 80″. The errors on those parameters are provided by the ellipse routine (see more details in Busko et al. 1996).
