Fig. 12.

Download original image

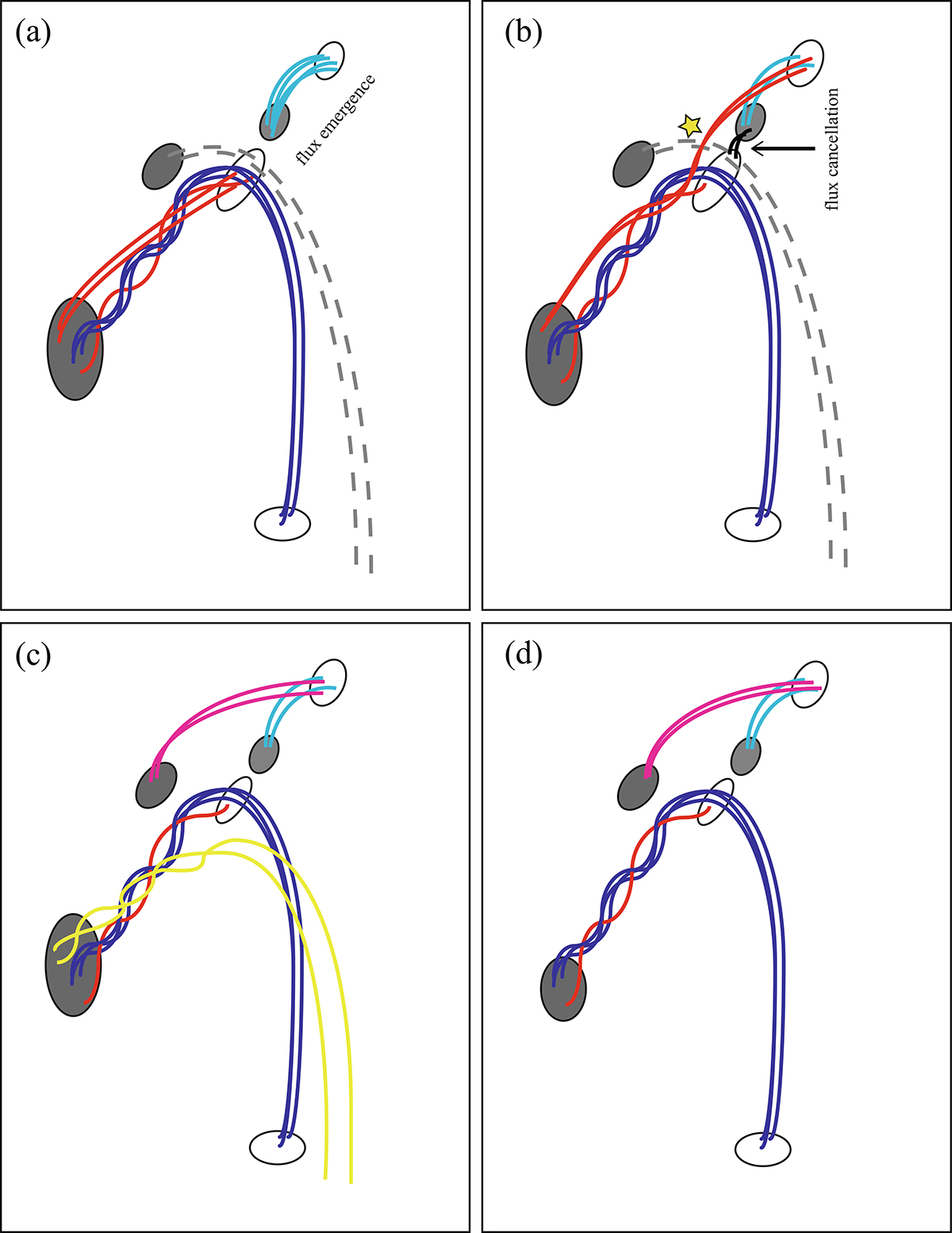

Cartoon showing the release of the constraining magnetic field through continuous magnetic reconnection. The gray cycle denotes the negative magnetic flux, and the white cylce denotes positive magnetic flux. The blue lines denote the main body of the inverted U-shaped solar filament. The red lines denote the constraining magnetic fields, and the dashed gray lines denote the open field lines.
